zásobování energií: Síť
Typ: Mixážní pult pro živou produkci
Barva: černá
Šířka (cm): 23,75
Výška (cm): 3,5
Hloubka (cm): 10,35
Hmotnost (g): 550

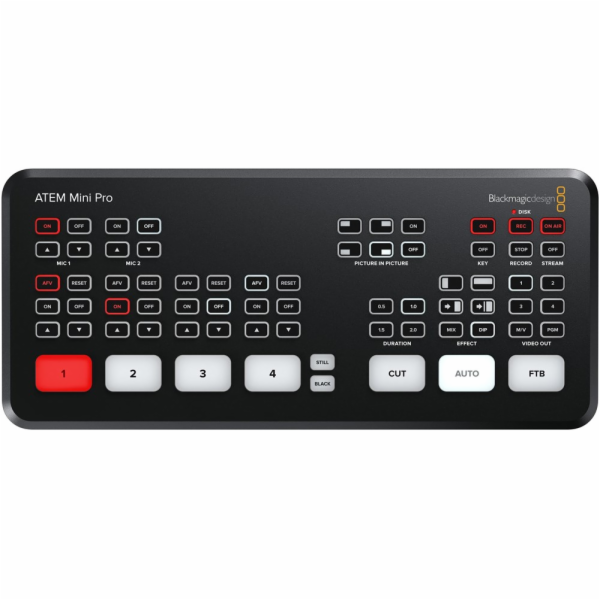

Compact 4-channel Full HD video mixer
ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.
ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There s also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.
Connections:
Total Video Inputs: 4
Total Video Outputs: 2
Total Aux Outputs: 1
Total Audio Inputs: 2 x 3,5mm stereo mini jack
Total Audio Outputs: None, embedded audio only
Timecode Connection: None
HDMI Video Inputs: 4x HDMI Typ A; 10-Bit-HD, switchable. 2 channel embedded audio
HDMI Program Outputs: 1
Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface: 1x USB-Port Typ C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards:
HD Video Input Standards: 720p/50; 720p/59,94; 720p/60 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60 1080i/50; 1080i/59,94; 1080i/60
HD Video Output Standards 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60
Ultra HD Video Standards: None
Video Sampling: 4:2:2 YUV
Colour Precision: 10 Bit
Colour Space: Rec 709
HDMI Input Resolutions from Computers: 1280 x 720p 50 Hz, 59,94 Hz und 60 Hz 1920 x 1080p 23,98, 24, 25, 29,97, 30, 50, 59,94 und 60 Hz 1920 x 1080i 50, 59,94 und 60 Hz
Colour Space Conversion: Hardware based real time
Audio Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Product Specifics:
Upstream Keyesr: 1
Downstream Keyers: 1
Advanced Chroma Keyers: 1
Linear/Luma Keyers: 2
Transition Keyer: DVE only
Total Number of Layers: 5
Pattern Generators: 1
Colour Generators: 2
DVE with Borders and Drop Shadow: 1
Interface: Minimum monitor resolution of 1366 x 768
Streaming:
Direct Streaming - ATEM Mini Pro supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).
Recording:
Direct Recording: 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Multi View Monitoring:
Multi View Monitoring: 1x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
Multi View Video Standard: HD
Media Player:
Media Players: 1
Channels: Fill and key for each Media Player.
Media Pool Still Image Capacity: 20 with fill and key.
Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
Control:
Control Panel: Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Control Panel Compatibilty: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
Control Panel Included: ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.
