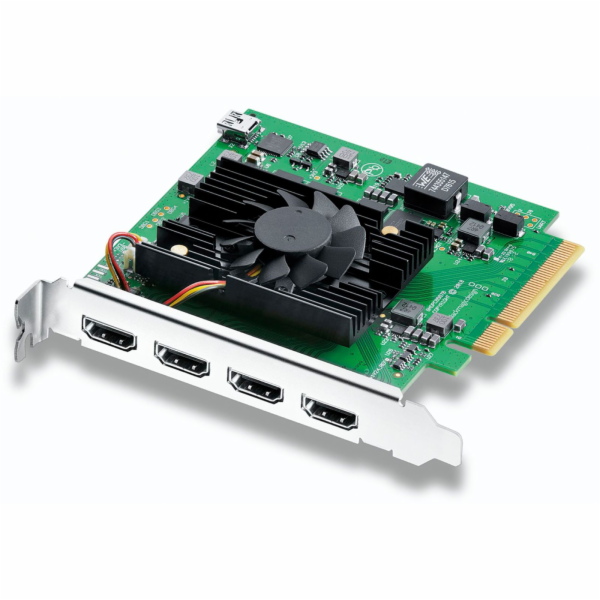

Blackmagic Design Decklink Quad HDMI Rekorder

Typ: Nahrávač
Info: Karta PCIe
Barva: stříbrná

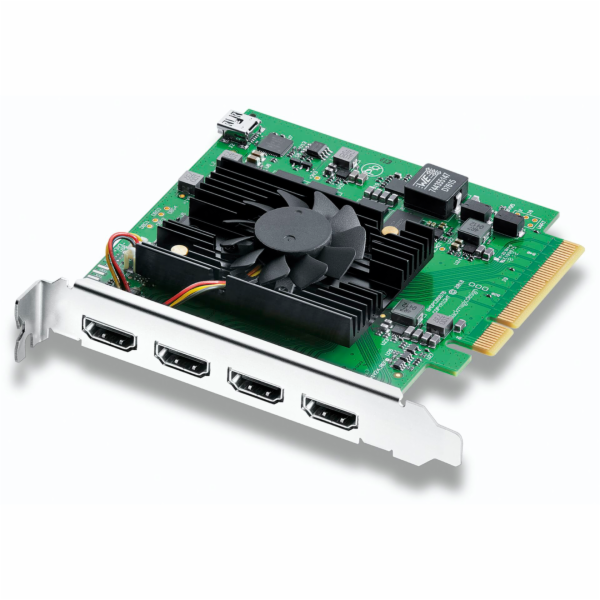

Blackmagic Design Decklink Quad HDMI Recorder

Blackmagic Design s DeckLink Quad HDMI Recorder is a powerful PCIe card that lets you simultaneously record four different HDMI sources in any combination of SD, HD, Ultra HD, 4K, and even computer formats.

With four independent HDMI 2.0b inputs, the DeckLink Quad HDMI Recorder gives you virtually four separate and customizable capture cards in one. This makes it perfect for live software mixing, real-time computer game recording, streaming, and more.

Connections:


HDMI 2.0b video inputs: 4
HDMI audio inputs: 8 channels embedded SD/HD/UHD/4K
Computer interface: 8-lane Generation 3 PCI Express, compatible with 8- and 16-lane PCI Express slots


Supported codecs:


AVC-Intra
AVCHD
Canon XF MPEG2
Digital SLR
DV-NTSC
DV-PAL
DVCPRO50
DVCPROHD
DPX
HDV
XDCAM EX
XDCAM HD
XDCAM HD422
DNxHR
DNxHD
Apple ProRes 4444
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes LT
Apple ProRes 422 Proxy
uncompressed 8-bit 4:2:2
uncompressed 10-bit 4:2:2



Video standards:


SD video standards: 525i/59.94 NTSC; 625i/50 PAL
HD video standards: 720p/50; 720p/59.94; 720p/60; 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60; 1080i/50; 1080i/59.94; 1080i/60
Ultra HD video standards: 2160p/23.98; 2160p/24; 2160p/25; 2160p/29.97; 2160p/30; 2160p/50; 2160p/59.94; 2160p/60
4K video standards: 4Kp/23.98 DCI; 4Kp/24 DCI; 4Kp/25 DCI; 4Kp/29.97 DCI; 4Kp/30 DCI; 4Kp/50 DCI; 4Kp/59.94 DCI; 4Kp/60 DCI
DVI standards: 640x480p/60; 800x600p/50; 800x600p/60; 1440x900p/50; 1440x900p/60; 1440x1080p/50; 1440x1080p/60; 1600x1200p/50; 1600x1200p/60; 1920x1200p/50; 1920x1200p/60; 1920x1440p/50; 1920x1440p/60; 2560x1440p/50; 2560x1440p/60; 2560x1600p/50; 2560x1600p/60
Audio sampling rate: standard television sampling rate of 48 kHz and 24 bits
HDMI color accuracy: 8-, 10-, and 12-bit RGB 4:4:4 in all modes up to 4Kp/30 DCI, and 8- and 10-bit YUV 4:2:2 and 4:2:0 in all modes; 8-bit RGB 4:4:4 in all DVI modes
Color space: Rec.601, Rec.709, Rec.2020
HDMI video sampling frequency: 4:4:4, 4:2:2 and 4:2:0
HDMI configuration: HDMI 2.0b supports Deep Color and HDR; automatically configures with the connected display
Multirate support: HDMI inputs switchable between SD, HD, Ultra HD, 4K DCI and DVI modes
Copy protection: recording of copy-protected HDMI sources is not possible via HDMI input. Always check copyright laws before recording or distributing content.
