Blackmagic Design Pyxis Monitor

Full HD video záznam (1080p): 60fps
Uhlopříčka obrazovky (cm): 12,7
Úhlopříčka obrazovky (palce "): 5
Rozlišení: 1920 x 1080
Jasnost (cd/m2): 1500
Kontrastní poměr: 1000:1
zásobování energií: USB-C
USB: 1x USB-C
Typ: Monitor
Barva: černá
Šířka (mm): 142,5
Výška (mm): 92
Hloubka (mm): 30
Hmotnost (g): 209

Blackmagic Design Pyxis Monitor

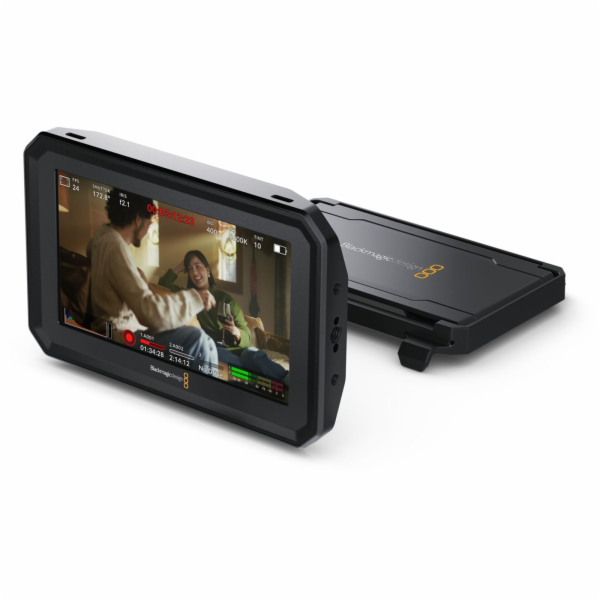

The Blackmagic PYXIS Monitor is a versatile 5-inch HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted almost anywhere, making it perfect for use when rigging or when other accessories are blocking the view of the Blackmagic PYXIS s integrated screen. The bright, super-bright 1500-nit screen makes monitoring easier, even in bright sunshine. It has a removable lens hood that can be folded up to protect the monitor. The Blackmagic PYXIS monitor is easy to set up with a single USB-C cable connection for video, power and camera control.

Features:


Display size: 5" (12.7 cm)
Display resolution: 1920 x 1080 Full HD
Display type: Capacitive LCD touchscreen
Brightness: 1500 cd/m2
Frame rates: Up to 60 fps
Tally: Rear-facing LED tally
Acceleration sensor: Automatic image rotation when mounted upside down
Compatible cameras: Blackmagic PYXIS 6K, Blackmagic PYXIS 6K PL, Blackmagic PYXIS 6K EF, Blackmagic URSA Cine 12K LF, Blackmagic URSA Cine 17K 65
Connections: USB-C with lockable connector for video, power, data and software updates
Attachment points:

1 x 1/4-inch thread with 20 threads on the bottom with ARRI dowel pin pattern
2 x M4 mounting points at the bottom
1 x 1/4-inch thread with 20 threads on the long side with ARRI dowel pin pattern
2 x M4 mounting points on the long side


Operating systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or higher, Windows 10 and 11
Power supply: Via USB-C
Operating temperature: 0 - 40°C
Dimensions (LxWxH): 142.5 x 30 x 92 mm
