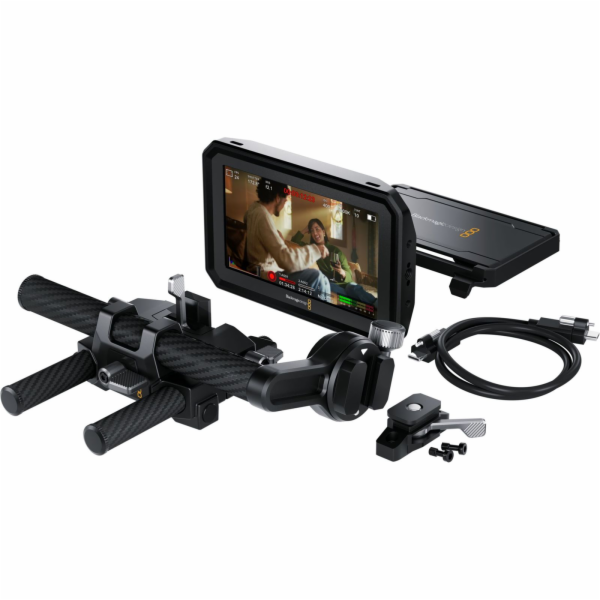

Blackmagic Design Pyxis Monitor EVF Kit

Full HD video záznam (1080p): 60fps
Uhlopříčka obrazovky (cm): 12,7
Úhlopříčka obrazovky (palce "): 5
Rozlišení: 1920 x 1080
Jasnost (cd/m2): 1500
Kontrastní poměr: 1000:1
zásobování energií: USB-C
USB: 1x USB-C
Typ: Sada monitoru
Barva: černá
Šířka (mm): 92
Výška (mm): 30
Hloubka (mm): 143
Hmotnost (g): 209

Blackmagic PYXIS Monitor EVF Kit

Blackmagic PYXIS Monitor is a versatile 5-inch HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as an electronic viewfinder.

Features:


Display size: 5 inch (12.7 cm)
Display resolution: 1920 x 1080 Full HD
Display type: Capacitive LCD touchscreen
Display brightness: 1500 nits
Frame rates: Up to 60fps.
Tally: Rear-facing LED indicator light
Accelerometer: Automatically rotates image when the monitor is mounted upside down
Power supply via USB-C
Operating temperature: 0 to 40 °C (32 to 104 °F)
Connections:  USB-C with locking connector for video, power, data and software updates.
Controls

Frame rate, shutter, aperture, time code, ISO, white balance, colour tone, power, recording start/stop, media, audio, focus zoom, digital panel and camera menus


Button control

Contains assignable functions F1, F2, F3 buttons to recall preset parameters or toggle functions


Mounting points:

1 x 1/4-20 bottom mounting point with ARRI lacating pin pattern
2 x M4 bottom mounting points
1 x 1/4-20 side mounting point with ARRI locating pin pattern
2 x M4 side mounting points


Mounting brackets

Blackmagic PYXIS Monitor Swivel Mount - included in EVF Kit
Blackmagic PYXIS Monitor Fixed Mount - included in EVF Kit
Blackmagic PYXIS Monitor Dovetail Shoe - included in EVF Kit
Blackmagic URSA Cine EVF Bracket - included in EVF Kit


Compatible cameras

Blackmagic PYXIS 6K
Blackmagic PYXIS 6K PL
Blackmagic PYXIS 6K EF
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65


Operating Systems

Mac 13.0 Ventura
Mac 14.0 Sonoma or later
Windows 10 and 11


Included:

Blackmagic PYXIS Monitor
Blackmagic PYXIS Clip-On Sunshade
Blackmagic PYXIS Monitor Swivel Mount
Blackmagic PYXIS Monitor Fixed Mount and screws
Blackmagic PYXIS Monitor Dovetail Shoe and screws
Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
2 x short 15mm carbon fibre rods
1 x long USB-C Viewfinder Cable
1 x short USB-C Viewfinder Cable
