Max. rozlišení videa (pixel): 3840 x 2160
4k video záznam (UHD): ano
Full HD- Záznam: ano
zásobování energií: Aku/ Síťové napájení
Aku baterie: vyměnitelný
Typ aku: Lithium-Ionen
Včetně baterií: ne
Sensor Chip: CMOS
Velikost senzoru: 17,78 x 10 mm (Four Thirds)
Hledáček: ne
SDI vstup: 1x
SDI výstup: 1x
HDMI: ano
Připojení mikrofonu: 3,5 mm zdířka
USB: 1x USB-C 3.1 Gen 1 (5 GBit/s)
PC rozhraní: USB-C 3.1 Gen. 1 (5 GBit/s)
Závit objektivu: Micro Four Thirds
Barva: černá
Šířka (mm): 84
Výška (mm): 69,5
Hloubka (mm): 65,8
RAW: ano

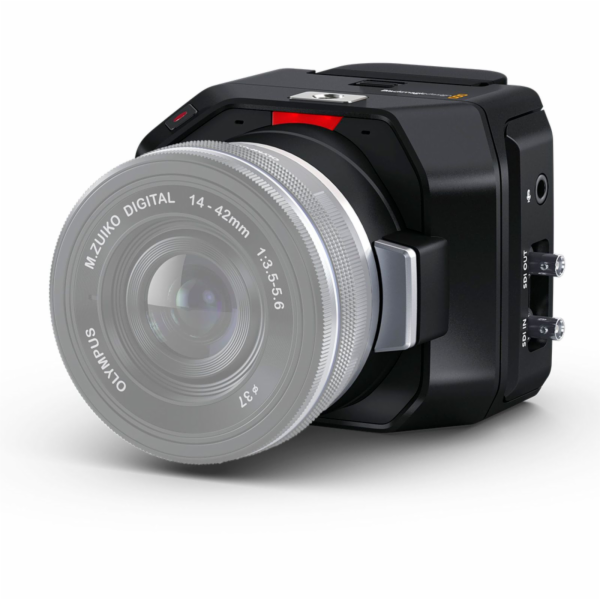

Blackmagic Micro Studio Camera 4K G2 Body, black
The Blackmagic Micro Studio Camera 4K G2 is an amazing live production camera in a tiny housing for broadcast quality. The Four Thirds sensor delivers 13 stops of dynamic range, incredible low-light performance and stunning Ultra HD images in all light conditions. Micro BNC connectors for 12G-SDI support uncompressed 10-bit video up to 2160p/60 and can output 2-channel audio. At the input, tally, camera control, integrated color corrector control and lens control via a ATEM mixer are supported. When a ATEM Mini mixer is in use, the HDMI port outputs 1080 signals and supports all control functions. And since the camera can record Blackmagic RAW to external USB-C memory, it sees itself as a film camera for Hollywood quality. Thanks to several mounting points, the Blackmagic Micro Studio Camera 4K G2 can easily be placed where other cameras are too bulky.
Features:
Effective sensor size: 17.78mm x 10mm (Four Thirds)
Lens mount: MFT bayonet with electronic aperture control
Aperture control: aperture, focus, zoom with supported lenses
Compatible with autofocus MFT lenses
Dynamic range: 13 stops
Dual Native ISO: 0 dB and 18 dB gain
Sensitivity at 0 dB gain: f11 at 2160p/59.94 / f12 at 2160p/50 / 2000 lux at 89.9% reflection
Noise Range: 63 dB at 2160p
Resolutions for filming: 3840 x 2160 (Ultra HD) up to 60 fps
Frame rates: 23.98; 24; 25; 29.97; 30; 50; 59.94; and 60 frames per second./ Offspeed frame rates of up to 60 fps in Ultra HD
Focusing: Autofocus available when using compatible lenses
Metadata support: Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Mounting options: 1x 1/4-inch thread (top) / 3x 1/4-inch thread (bottom)
Connections:
1x SDI video input
1x SDI video output
SDI rates: 3G, 6G, 12G
1x HDMI 2.0 Type A video output (HDMI output always in HD at frame rates up to 1080p/60)
Analog audio inputs: 1x 3.5 mm stereo input, also usable as timecode input
Reference inputs: Program SDI input on camera
SDI audio outputs: 2 channels of program audio embedded in 3G/6G/12G-SDI
HDMI audio outputs: 2 channels 48 kHz and 24 bit
Remote control of the camera via SDI, HDMI or USB Ethernet with suitable adapter
Computer interface: 1x USB-C 3.1 Gen 1 (up to 5 Gbit/s) expansion port for connection to external recording devices and focus and zoom demand devices. USB-C port for software updates
Integrated stereo microphone
HD-Videonormen: 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60, 1080i/50; 1080i/59,94; 1080i/60
Ultra-HD-Videonormen: 2160p/23,98; 2160p/24; 2160p/25; 2160p/29,97; 2160p/30; 2160p/50; 2160p/59,94; 2160p/60
SDI compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M Level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
SDI audio sampling frequency: standard TV sampling rate of 48 kHz and 24 bits
Recording: 1x USB-C 3.1 Gen 1 expansion port for external media for recording in Blackmagic RAW
Recording formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 with the selected frame rate
Power supply: 1x external 12V DC power supply unit for 36 watts or battery backup (battery not included)
Dimensions: 84 x 69.5 x 65.8 mm
Colour: black
