zásobování energií: Aku/ Síťové napájení
Aku baterie: vyměnitelný
Včetně baterií: ne
Typ aku: Lithium-Ionen
Typ baterie / aku: Řada Sony BP-U
XLR- Vstupy: 1x
Připojení mikrofonu: ano
Síť (RJ 45): ano
Připojení sluchátek: ano
SDI výstup: 1x
Rozlišení snímače (mio. pixel): 24,6
HDR: ano
Sensor Chip: CMOS
Velikost senzoru: 36 x 24 mm
RAW: ano
Závit objektivu: PL- Mount
Výměnná optika: ano
Timecode: ano
4k video záznam (UHD): ano
Max. rozlišení videa (pixel): 6048 x 4032
Full HD- Záznam: ano
Výška (mm): 119,5
Hmotnost (kg): 1,5
Barva: černá
Hloubka (mm): 151
Šířka (mm): 106
Diagonála displeje (palce "): 4,0
Typ: LCD
Touchscreen: ano
Počet slotů pro paměťové karty: 2
CF: ano
Solid State Drive (SSD): volitelný
Bluetooth: ano

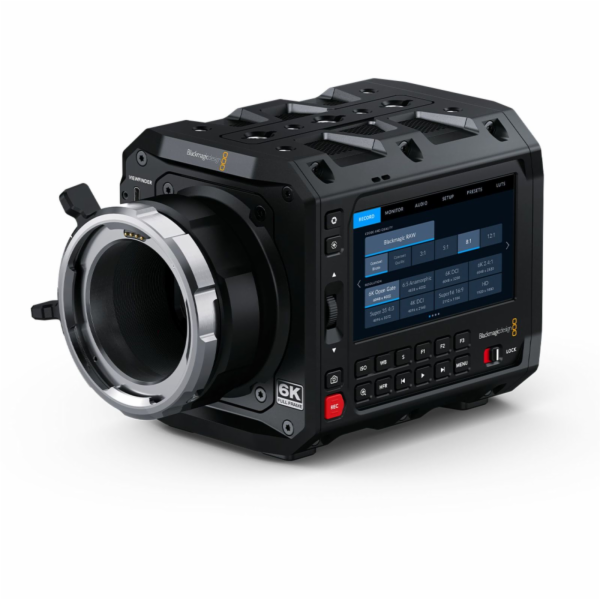

Blackmagic PYXIS 6K digital film camera (PL-mount)
The Blackmagic Pyxis 6K PL-mount version is a versatile digital film camera with a 36 x 24 mm full frame sensor and 13 stops of dynamic range. It supports PL-mount full-frame lenses from Leica, Panasonic and Sigma and enables shooting in Blackmagic RAW. Thanks to its flexible mounting options, it is ideal for various production requirements.
Features:
Customizable high-end cinema camera Precise skin tones and rich, natural colors Versatile camera design for different production requirements Large full-frame 6K sensor (36 x 24 mm) with wide dynamic range Native resolution: 6048 x 4032 pixels (almost three times the size of a Super 35 sensor) Internal low-pass optical filter, matched to the sensor Two CFexpress media recorders Ethernet ports for media sharing via Blackmagic Cloud Simultaneous recording of 12-bit Blackmagic RAW and small H.264 proxy files Light and robust Attachment to cranes, gimbals or drones possible 1/4" and 3/8" threaded holes on top and bottom of the housing Multiple mounting points and side plates for mounting optional accessories such as handles, microphones or SSDs Suitable for the production of feature films, documentaries and TV shows, ideal for low-budget movies and TV spots as well as large format corporate films Suitable for cinematic shooting: Low depth of field, working without crop factor in anamorphic 6:5 ratio Dynamic range and sensitivity: 13 stops of dynamic range, dual native basic sensitivity up to ISO 25,600, Brilliant, low-noise images in all lighting conditions Shooting modes: up to 36 fps at full sensor resolution / up to 120 fps in crop mode Dual-native mode: high ISO sensitivity, full use of the sensor dynamic range and reduction of film grain and noise Supported resolutions from HD to DCI 4K and 6K Display: Large 4-inch HDR touchscreen, high resolution for monitoring and viewing the recordings, Full HD resolution for precise framing and focusing, ideal as a focusing aid Display brightness: 1500 nits (also readable in sunlight) Clear, easily accessible controls Innovative side plates with 1/4" and 3/8" holes for attaching accessories for flexible rigging Capture in Blackmagic RAW format to control drawing, exposure and color for post-processing Recording to CFexpress cards or external hard drives Intuitive Blackmagic OS operating system for full control of on-screen camera functions such as focus and exposure tools, 3D LUTs, HDR, metadata input, timecode, BlackmagicRAW settings and more Use data from 5G or 4G smartphones by connecting the Blackmagic to the smartphone’s USB-C port or wired Ethernet via the camera’s Ethernet port for real-timeMedia transfer to post-production teams worldwide Built-in microphones and professional audio inputs USB-C for external drives and control via Ethernet Integrated SRT and RTMP live streaming Wireless remote control of the camera via Bluetooth Full 24.6-megapixel photo capture with dedicated still button in Blackmagic RAW format Operation with BP-U series high capacity batteries or 12V DC (batteries not included) Includes DaVinci Resolve Studio software (activation key)
Scope of delivery:
Blackmagic PYXIS 6K Protective cap for lens connection PYXIS Standard Plate PYXIS SSD Plate 60W power supply with interlocking plug and international adapters DaVinci Resolve Studio Activation Key
Technical data:
Sensor megapixel, effective: 24.6 MP Effective sensor size: 36 x 24 mm (full frames) Lens mount: PL-mount Aperture control and autofocus: Aperture and focus on supported lenses Dynamic range: 13 levels Dual Native ISO: 400 and 3200 Maximum resolution for filming: 6048 x 4032 pixels, 36 fps (Open Gate 3:2) Full HD recording possible with 120 fps Display: 4" touch screen, 1500 nits, 1920 x 1080 pixels Connections: Total video outputs: 1x 12G-SDI up to 2160p 60 1x Viewfinder USB-C with power, data, video and locking connector Analog audio inputs: 1x analog mini XLR audio input, switchable between microphone with phantom power and line level (up to +14dBu) 1x 3.5 mm stereo - input Analog audio output: 1x 3.5 mm headphone jack Reference inputs: Tri-Sync/Black Burst and Timecode Computer interface: USB Type-C for external drive recordings, PTP camera control and software updates 1x Ethernet RJ-45 gigabit port with support for 10/100/1000 BASE-T Built-in stereo microphones and 1x mono speaker Media: 2x CFexpress Type B card slot Dimensions (L x W x H): 151 x 106 x 119 mm Weight: about 1.5 kg
