Hloubka (mm): 169,7
Šířka (mm): 273,6
Barva: černá
Výška (mm): 167,3
Hmotnost (kg): 1,69
Rozlišení snímače (mio. pixel): 8,29
Hledáček: ne
Sensor Chip: CMOS
Velikost senzoru: 17,78 x 10 mm (Four Thirds)
Připojení mikrofonu: ano
Síť (RJ 45): ano
HDMI: ano
SDI vstup: 1x
Připojení sluchátek: ano
SDI výstup: 1x
XLR- Vstupy: 2x
USB: 2x USB-C 3.1 Gen 1 (5 GBit/s)
RAW: ano
Timecode: ano
Max. rozlišení videa (pixel): 3840 x 2160
4k video záznam (UHD): ano
Full HD- Záznam: ano
Diagonála displeje (cm): 17,78
Typ: LCD
Touchscreen: ano
Diagonála displeje (palce "): 7
Výměnná optika: ano
Závit objektivu: Micro Four Thirds
Solid State Drive (SSD): volitelný
zásobování energií: Síť

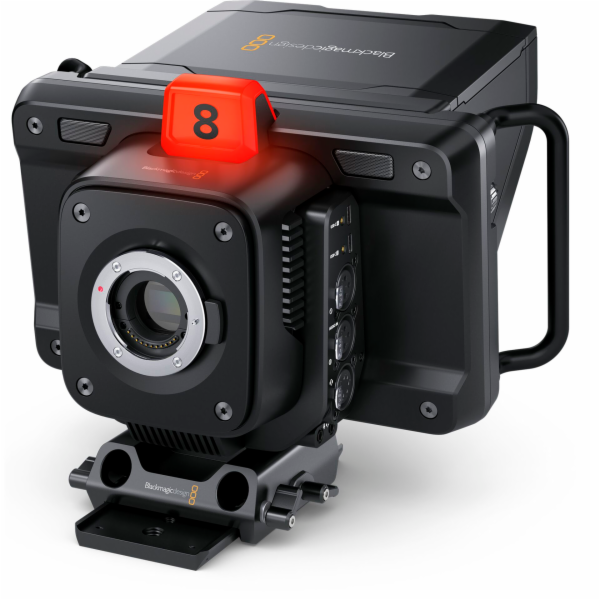

Blackmagic Studio Camera 4K Pro G2 body
Innovative studio camera in a compact design with the same features as large studio cameras. Thanks to the dynamic range and colour processing of a digital film camera, film-quality images can be achieved even in difficult lighting conditions. The sensor is designed for ISO values up to 25,600. So you can take great pictures even in dimly lit environments. Even in moonlight! Advanced features include talkback, tally, camera control, a built-in colour corrector, Blackmagic RAW recording to USB drives, live streaming and more. Focus and zoom demand controls can even be connected for iris control.
Designed for high-performance SDI mixers, the Blackmagic Studio Camera 4K Pro G2 features professional 12G SDI and 10G Ethernet connections. This is optimal when the camera is far away from the mixer. There is a 12G-SDI output and a 12G-SDI input for programme feedback with camera control, talkback and tally. The HDMI output supports the same control commands. The 10G Ethernet connection also enables a cost-effective SMPTE-compliant workflow over a single cable.
Features:
Effective sensor size:
17.78 x 10 mm (Four Thirds)
Lens mount:
MFT bayonet with electronic aperture control
Iris control:
Iris, focus, zoom with supported lenses
Dynamic range:
13 stops
Dual Native ISO:
0 dB and 18 dB gain
Sensitivity at 0 dB gain:
f11 at 2160p/59.94 f12 at 2160p/50 2000 lux at 89.9% reflectance
Signal-to-noise ratio:
63 dB at 2160p
Resolutions for filming:
3840 x 2160 (Ultra HD) up to 60 fps
Frame rates:
23.98; 24; 25; 29.97; 30; 50; 59.94; and 60 frames per second. Offspeed frame rates of up to 60 fps in Ultra HD.
Focusing:
Autofocus available when using compatible lenses
Screen dimensions:
7 inches with 1920 x 1200 pixels
Screen type:
LCD with capacitive touch screen
Screen brightness:
2000 cd/m2
Controls:
Touch screen for camera settings and menus as well as setting wheel, programme button, assignable function keys F1, F2 and F3, rotary control for brightness, contrast and peaking
Mounting options:
2x 1/4-inch tripod thread 1x 3/8-inch tripod thread
Connections:
1x SDI video input 1x SDI video output SDI rates: 1.5G, 3G, 6G, 12G 2x 2 XLR analogue audio inputs, switchable between microphone and line levels. Supports phantom power. 1 x 3.5 mm stereo input, can also be used as time code input 1x HDMI 2.0 video output 1x 5-pin XLR socket for talkback headset 1x 3.5 mm TRRS mini jack for headphones with microphone Reference inputs: for Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter SDI audio outputs: 2 channels of programme audio embedded in 1.5G / 3G / 6G / 12G SDI. 2 talkback channels on 15 and 16 Ethernet: 10 Gbit/s Remote control of the camera via SDI, HDMI or Ethernet Computer interface: 2x USB Type-C 3.1 Gen 1 (up to 5 Gb/s) expansion ports for connection to external recording devices and Focus and Zoom Demands. USB-C Port A for software updates
Audio:
Integrated stereo microphone 1 mono speaker
Streaming:
Direct streaming: The Blackmagic Studio Camera 4K Pro G2 supports direct live streaming via Ethernet using Real Time Messaging Protocol (RTMP) or via USB-C over a shared mobile internet connection. Streaming platforms: ATEM Television Studio HD8 ISO, ATEM Streaming Bridge, Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, Afreeca TV, Bilibili, DouYu, Weibo.
Media:
2x USB-C 3.1 Gen 1 expansion ports for external media to record in Blackmagic RAW Formats media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Video resolutions:
UHD: 2160p/23.98; 2160p/24; 2160p/25; 2160p/29.97; 2160p/30; 2160p/50; 2160p/59.94; 2160p/60 HD: 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60; 1080i/50; 1080i/59.94; 1080i/60 SDI compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 SDI audio sampling rate: Standard television sampling rate of 48 kHz and 24 bits. Supported codecs: Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 Recording formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate
Colour Corrector:
DaVinci YRGB
Talkback and Tally:
1x display in front, visible for performer 1x display at rear, visible for operator Talkback: SDI channels 15 and 16
Power supply:
1x external 12V DC power supply for 60 watts 1x lockable 12V DC socket for 5.5 mm hollow plug 1x four-pole XLR 12V DC socket for external power supply or battery charging 1x RJ45 Ethernet port for power from PoE power supply units type 4 Power consumption: 26-40 watts via the DC socket 30-46 watts via the PoE port
Environment:
Operating temperature: 0 - 40° C Storage temperature: -20 - 45 °C Relative humidity: 0 - 90 % non-condensing
Dimensions, weight, colour:
Dimensions (W x D x H): 273.6 x 169.7 x 167.3 mm Weight: approx. 1.69 kg Colour: black
