Bosch GDS 18V-780 Akku-Drehschlagschrauber

Maximální zatížení na 1. rychlost otáček (min-1): 0 - 1300
Maximální zatížení na 2. rychlost otáček (min-1): 1500
Max. počet otáček 3. stupně (min-1): 2000
Maximální volnoběžné otáčky (min-1): 2400
Tvrdý točivý moment (Nm): 300 / 550 / 780
napětí akumulátoru: 18
Typ baterie / aku: Lithium-Ionen
Včetně baterií: ne
Elektronická stabilizace otáček: ano
LED osvětlení: ano
Typ: Rotační rázový utahovák
Způsob provozu: Aku baterie
Držák nástroje: 1/2" vnější čtyřhran
Barva: modrá / černá
Délka (cm): 17,0
Šířka (cm): 8,7
Výška (cm): 23,8
Hmotnost (kg): 2,1

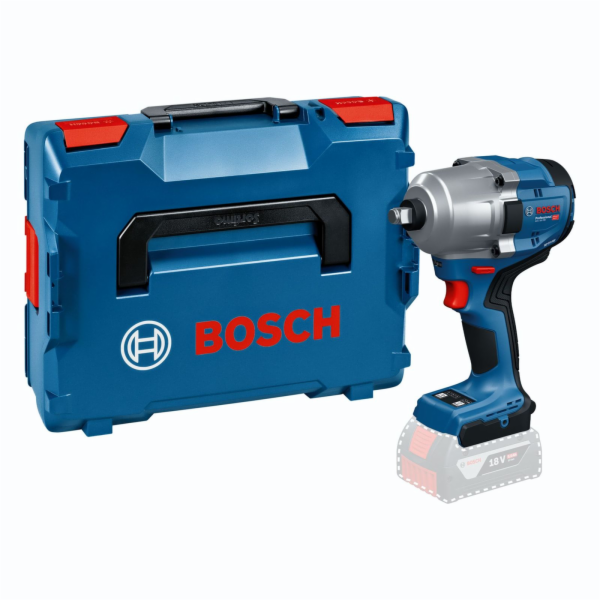

Bosch GDS 18V-780 cordless rotary impact wrench + L-BOXX 136 (without battery, without charger)

The GDS 18V-780 Professional effortlessly handles even demanding screwing tasks thanks to its high torque. With a head length of only 170 mm and a weight of 2.1 kg, it is compact and handy, even for tight spaces. The robust 1/2" tool holder with protective ring reduces stress by 20% and ensures a long service life.

Several operating modes make it flexible – from Turbo-Mode for maximum power to ABR-Function (Auto Bolt Release), which automatically stops screws so they don t fall off. This makes the impact wrench suitable for a wide range of applications in metal construction, vehicle repair, railway- and bridge construction. Comfortable softgrip-surfaces and the lightweight design increase ease of use in everyday use.

Features:


Max. torque: 780 Nm (tightening), release torque: 1000 Nm
Compact design: only 170 mm head length, weight 2.1 kg without battery
Tool holder: robust 1/2" square with protective ring
Beat number: 1900–2400 bpm, depending on the level
Battery voltage: 18 V, compatible with Bosch Professional 18V System (AMPShare)
Operating modes: Turbo-Mode for full power, ABR-Function for safe screw loosening
Areas of application: flanged pipes, steel beams, concrete parts, wheel assembly, chassis- and engine work


Technical data:


Weight excl. Battery: 2.1 kg
Torque, max: 780 Nm
Beat number: 1900 - 2400 bpm
Hit count (2. Level): 2100 bpm
Strike number (3. Level): 2400 bpm
Battery voltage: 18.0 V
Breakaway torque, max.: 1000 Nm
Dimensions (W × L × H): 87 x 170 x 238 mm
Total vibration values (tightening screws and nuts of maximum permissible size):
Vibration emission value ah: 14.9 m/s2
Uncertainty K: 1.5 m/s2


Scope of delivery:


Battery-Rotary Impact Wrench GDS 18V-780 Professional solo
L-BOXX 136
Without battery and charger
