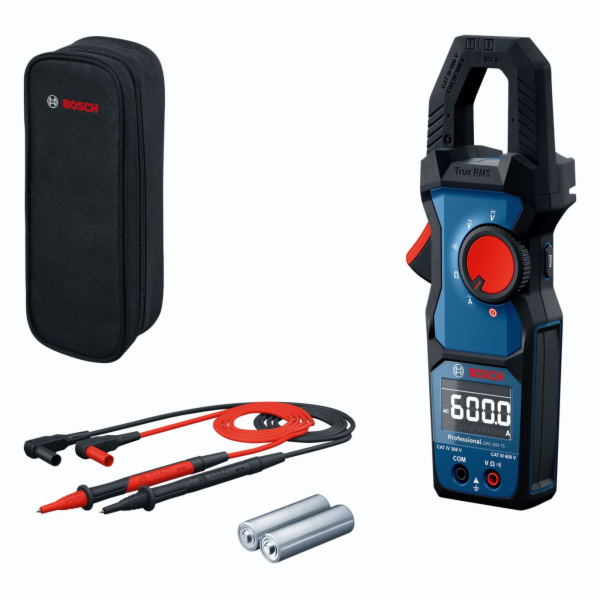

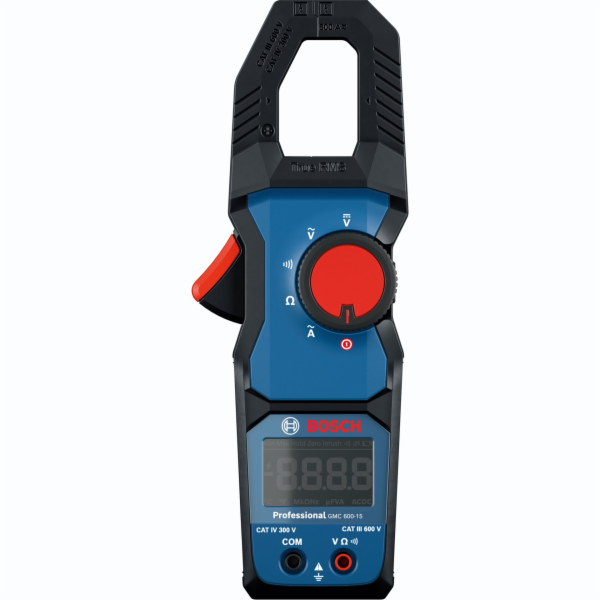

Bosch GMC 600-15 Clamp Meter

Způsob provozu: Baterie
Typ baterie / aku: AA Mignon
Potřebný počet: 2
Displej: LCD
Typ ochrany: IP54
Napětí (V): 0 - 600
Odpor (Ohm): 40000000
Bluetooth: ne
Vhodné pro App: ne
WiFi: ne
Typ: Klešťový měřič proudu
Barva: blau / schwarz
Délka (mm): 232
Rozměry: 232 x 83 x 49

Bosch GMC 600-15 current clamp

The GMC 600-15 Professional increases your efficiency with precise measurements in a variety of applications. It offers a wide range of measurement options, for example alternating current up to 600 A and both direct and alternating voltage up to 600 V. The large LCD display with inverted display ensures clear readability and True RMS measurement for precision. Thanks to its robust design with protection class IP54, this current clamp withstands falls and harsh conditions and is therefore a reliable companion at demanding work sites.

Features:

Efficient and robust True RMS current clamp with inverted LCD display for precise readings
Designed for harsh construction site conditions thanks to IP54 protection class and shock-absorbing housing
Measures AC up to 600 A and voltage up to 600 V AC/DC
Compact design for one-hand operation, complemented by a separately available magnetic suspension

Technical data:


AC voltage: 600 V
AC voltage AC resolution: 0.1 V
AC voltage AC accuracy:   1.2% + 5
AC: 600 A
AC AC Resolution: 0.1 A
AC AC accuracy:   1.8% + 5
DC voltage: 600 V
DC Resolution: 0.1 V
DC voltage DC accuracy:   1.0% + 3
Resistance measuring range: 40 M?
Resistance resolution: 0.01 MOhm
Resistance accuracy:   2.0% + 5
Passage: Yes
Pass through resolution: 0.1 ohm
Pass accuracy:   1.0 % + 5
IP protection: IP54
True RMS True RMS value: Yes
Safety class: CAT III 600 V / CAT IV 300 V
Display type: LCD inverted
Acoustic feedback
Passage range: 600 ?
Dimensions (width x length x height): 83 x 49 x 232 mm
