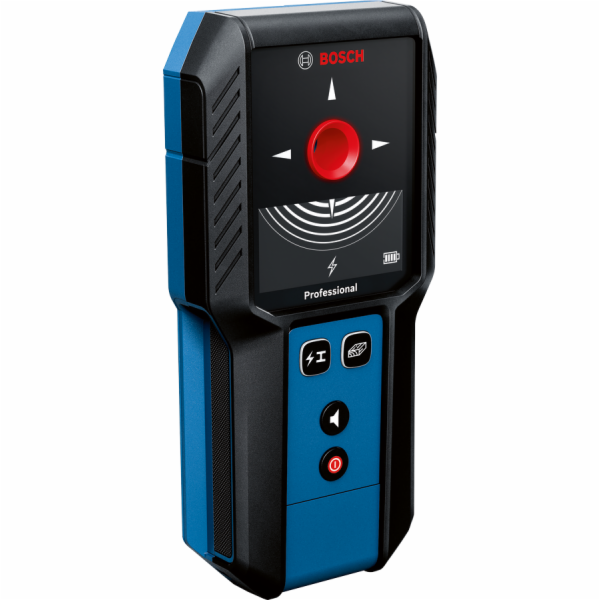

Bosch GMS 120-27 Multi Detector

Ochrana proti vodě: Voděodolný
Ochrana proti prachu: ano
Typ ochrany: IP54
Železné kovy: ano
Neželezné kovy: ano
Dřevěné konstrukce: ano
Živé kabely: ano
Typ baterie / aku: AA Mignon
Potřebný počet baterií: 2
Typ: Lokalizátor
Barva: modrá / černá
Šířka (mm): 86
Výška (mm): 186
Hloubka (mm): 33
Hmotnost (g): 290
Maximální hloubka umístění (mm): 120
Hloubka detekce oceli (mm): 100
Hloubka detekce mědi (mm): 120
Hloubka detekce živého kabelu (mm): 50
Hloubka detekce dřevěné spodní konstrukce (mm): 30

Bosch GMS 120-27 Professional – Detection Device

If you want to drill safely, this device helps you find hidden wires, metal and wooden beams with confidence. The display shows the result directly, and a colour-coded marking hole indicates the exact position. Operation is straightforward, so you can focus on your task. Even on rough construction sites, the device stays ready to use – the housing protects it from impacts and moisture.

Clear guidance before drilling
Whether you re renovating or installing, this detection device helps you locate hidden objects in walls. This way, you can mount cupboards, heating systems or air conditioners without unpleasant surprises. The material detection also helps you identify the type of obstacle.

Built for everyday use on site
With its durable design and simple operation, the device is made for daily use. It runs on standard batteries, and its low weight makes it comfortable to use – even over longer periods.

Features:


Shows the position of metal, live wires and wood behind walls
Colour-coded marking hole helps you mark the exact spot
Suitable for tough environments with shock-absorbing housing
Protected against dust and splashes with IP54 rating
Detects different materials and shows their properties
Maximum detection depth of up to 12 cm for deep objects
Distinguishes between magnetic and non-magnetic metals and live cables
Helps you find the centre of the detected object
Easy mode switching for different applications


Technical Specifications:


Detectable materials: magnetic metal, non-magnetic metal, live wires, wooden substructures
Maximum detection depth: 120 mm
Detection depth magnetic metal: 100 mm
Detection depth non-magnetic metal: 120 mm
Detection depth live wires: 50 mm
Detection depth wooden substructures: 30 mm
Protection class: IP54
Power supply: 2x 1.5 V LR6 (AA) or 2x 1.2 V HR6 (AA)
Dimesions: (B x H x T) 86 x 186 x 33 mm
Additional feature: marking hole
Weight: 290 g


Scope of delivery:


GMS 120-27 Professional detection device
2x battery (AA)
Bag
