Brennenstuhl Stromverteiler 2m H07RN-F5G4.0

Počet: 1x
Provedení: CEE
Konstrukce: Zástrčka
Počet zásuvek: 7
Oblast použití: Interiér / Exteriér
Třída ochrany (IP kód): IP44
Počet: 3x
Provedení: CEE
Nadstavba: Zástrčka
Typ: Elektrický rozvaděč
Délka kabelu (m): 2.0
Barva: bílá / černá
Šířka (mm): 320
Výška (mm): 250
Hloubka (mm): 620
Hmotnost (g): 8100
Počet: 4x
Provedení: Ochranný kontakt (Typ F)

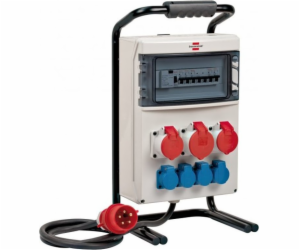

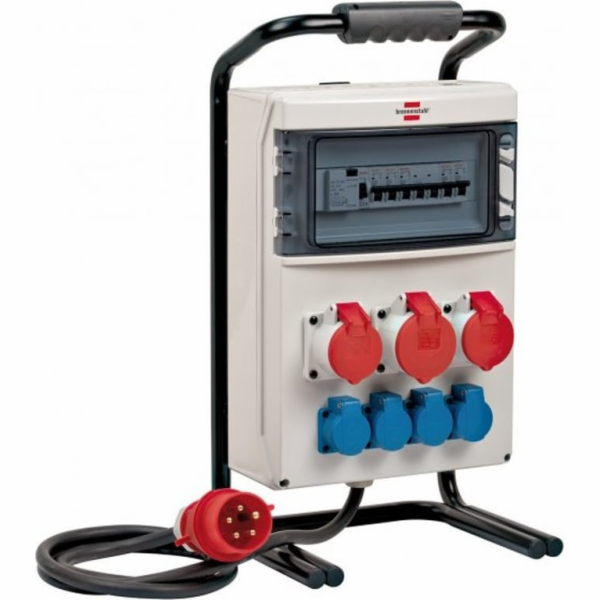

Brennenstuhl Portable construction distribution board with FI circuit breaker, 2 m cable, for use on construction sites IP44

The portable construction distribution system with a 2 m oil-resistant cable is ideal for use on construction sites or for permanent outdoor use thanks to its IP44 protection class and robust cable quality. The portable construction cabinet with a total of 3 CEE sockets and 4 protective contact sockets can be transported easily thanks to its ergonomically shaped carrying handle. The additional FI-Personenschutzschalter 30 mA ensures even more safety and protects against possible electrical accidents. It quickly separates the active conductors from the grid as soon as differential currents occur. The construction distributor also has a practical winding device for the connection cable on the back.

Features:


Construction site distributor for exterior with a total of 4 protective contact sockets (each individually secured and can be loaded with 16A) and 1x 32A + 2x 16A CEE sockets
Construction site distributor with FI-circuit breaker 30mA ensures even more safety and protects against possible electrical accidents: Separates the active conductor from the mains as soon as differential currents occur
Portable power distribution with robust plastic-coated steel tube frame for safe standing and additional housing protection, additionally with ergonomically shaped carrying handle for convenient transport
Power distribution with oil-resistant rubber cable (H07RN-F 5G4,0) for permanent outdoor use - ideal for long-term use on construction sites
Scope of delivery: 1x Construction distributor with FI-protection and 2m oil resistant cable


Technical data:


Nominal input voltage: 400 V
Robust and plastic coated steel tube frame
Protection class: IP44
Max electrical load capacity: 22000 W
Max current carrying capacity: 32 A
With FI-personal protection switch 30mA / 40A / type A
Number of circuit breakers: 5 (4x LS 230V/16A 1-pole; 1x LS 400V/16A 3-pole)
Number of protection sockets: 4
Number of CEE sockets total: 3
CEE socket - 16 A: 2x 16A 3P+N+PE (5p) 400V
CEE socket - 32 A: 1x 32A 3P+N+PE (5p) 400V
Plug system connector: CEE 32A 3P+N+PE (5p) 400V
Cable designation: H07RN-F 5G4,0
Cable length: 2m
Protection class: II
Dimensions (L x W x H): 62 x 32 x 25 cm
Weight: 8.1 kg
