Brinno BCC5000

Max. rozlišení videa (pixel): 3840 x 2160
Nabíječka je součástí dodávky: ne
Leistungsangabe kompatibles Ladenetzteil (Watt): 10 - 10
zásobování energií: Aku baterie
Potřebný počet baterií: 1
Slot pro paměťovou kartu: microSD
Rozlišení: 3840 x 2160
Sensor Chip: CMOS
Senzorový čip (palce "): 1/1,8
Rozlišení snímače (mio. pixel): 9,72
Typ: Časosběrná kamera
USB: 1x USB-C
Bluetooth: ano
WiFi: ano
Barva: černá
Šířka (mm): 170
Výška (mm): 236
Hloubka (mm): 104
Hmotnost (g): 1109

Brinno BCC5000 Wi-Fi & 4K Time Lapse Set – Tool

If you want to document construction projects over weeks or months, you need equipment that lasts. The BCC5000 set combines a 4K time lapse camera with a weatherproof housing and a stable mount – for recordings you can rely on.

Stability meets control
The camera is controlled wirelessly via WiFi or Bluetooth and adjusts automatically to changing light conditions. This gives you clear images – even at dusk or in bright sunlight. The mount keeps the camera steady, even in wind or vibrations.

Long-term recording without interruption
With the rechargeable battery, you get up to 200 days of operation at 5-minute intervals. The camera saves your recordings on a microSD card and allows remote access via the cloud – so you stay in control even when you re not on site.

Features:


4K time lapse camera with large sensor for detailed images day and night
WiFi and Bluetooth connection for wireless control via mobile devices or desktop
Weatherproof housing with IP65 rating for use on construction sites
Super wide-angle lens with 118° field of view for wide image sections
Automatic exposure adjustment for consistent image quality in changing light
Rechargeable batteries with high capacity for months of operation
Stable camera clamp with high load capacity for flexible mounting on pipes or surfaces
Cloud access for remote project monitoring and data management
Live view and camera settings controllable directly via mobile devices


Dimensions (W x H x D): 96.0 x 97.5 x 66.2 mm
Weight: 224 g (without battery)

Technical Specifications:

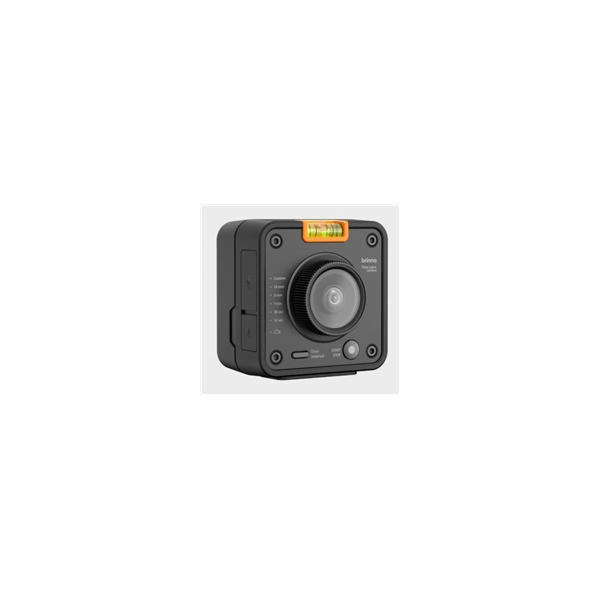

Camera model: TLC5000
Resolution: 4K (UHD)
Sensor: 1/1.8” Sony STARVIS 2
Pixel size: 2.0 µm x 2.0 µm
Aperture: f/2.0
Focal length: 2.8 mm (equivalent to 13 mm in 35 mm)
Field of view: 118° (H: 114°, V: 77°)
Time lapse interval: 3 seconds to 24 hours
Video format: MP4 (Motion JPEG)
Storage: microSD/microSDHC/microSDXC up to 256 GB (Class 10 recommended)
Power supply: MRB1000 battery or USB-C 5V 2A
Wireless connection: BLE 4.0, WiFi 2.4 GHz
Operating temperature: 0 °C to 45 °C
Dimensions (W x H x D): 96.0 x 97.5 x 66.2 mm
Weight: 224 g (without battery)

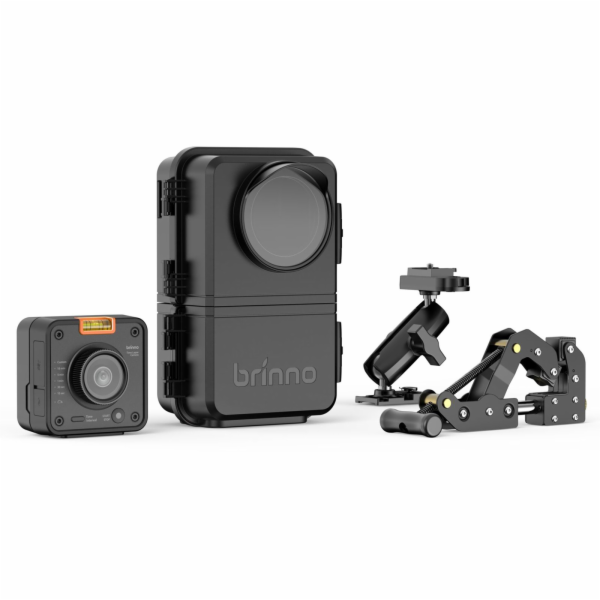

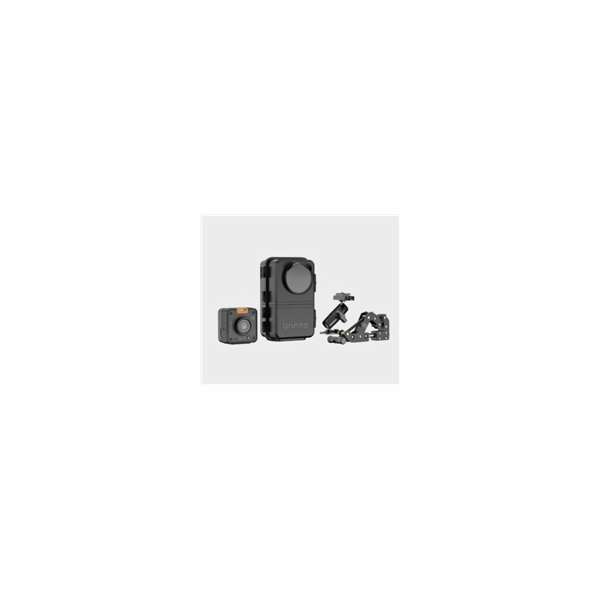

Scope of delivery:


1 x TLC5000 time lapse camera
2 x MRB10000 rechargeable batteries
1 x ATH5000 weatherproof housing
1 x ACC5000 camera clamp with magic arm and extension rods
1 x Lens cover
1 x microSD card
1 x microSD adapter
1 x Quick start guide


Note:


Charger not included in the scope of delivery
Compatible charger: USB 10 W
