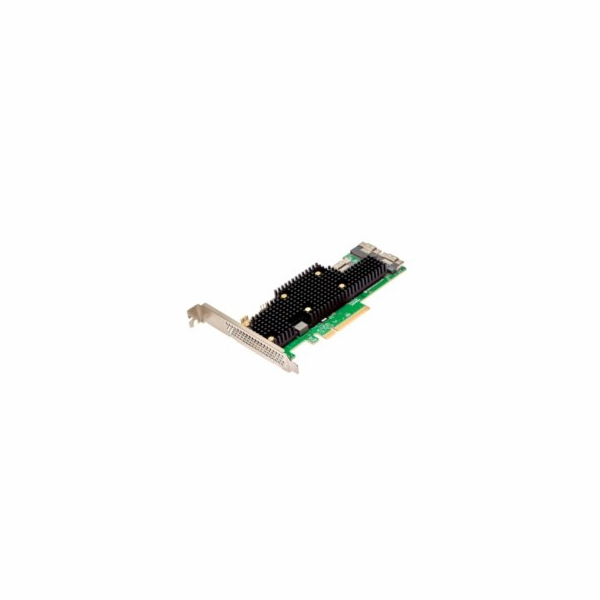

eHBA 9620-16i Tri-Mode Storage Adapter
Enable endless design flexibility with Tri-Mode connectivity and maximum performance benefits with x8, PCIe 4.0 eHBA
The 9620-16i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9620-16i eHBA delivers the performance and scalability needed by critical applications.
Low profile, half-length x8 PCIe Gen 4.0 adapter
Connects up to 32 SAS/SATA devices or 32 NVMe devices
RAID 0/1/10 with hot spare support
Hardware Secure Boot and SPDM Attestation support
SMART monitoring
Driver temperature monitoring
SafeStore key management for attached SEDs
SFF-TA-1005 Universal Bay Management (UBM) Ready
Specification
Value
Lifecycle
Active
Distributor Inventory
No
Brackets
Full height and low profile
Data Transfer Rates
22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
Generation
24G
Host Bus Type
x8 lane PCI Express 4.0
Internal Connectors
2 x8 SFF-8654 (SlimSAS)
Internal Ports
16
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
> 5,000,000 hours at 40° C
Operating Humidity
5% to 90% Non-condensing
Operating Temperature°C
0°C to 55°C
OS Support
Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions
Low profile 6.127” x 2.712”
Regulatory Certifications
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
What's in the box
9620-16i HBA, Low Profile Bracket, Bracket, FH (attached)
Product
Manufacturer Part #
What's in the Box
eHBA 9620-16i
05-50111-02
9620-16i eHBA, Low Profile Bracket, FH (attached)
