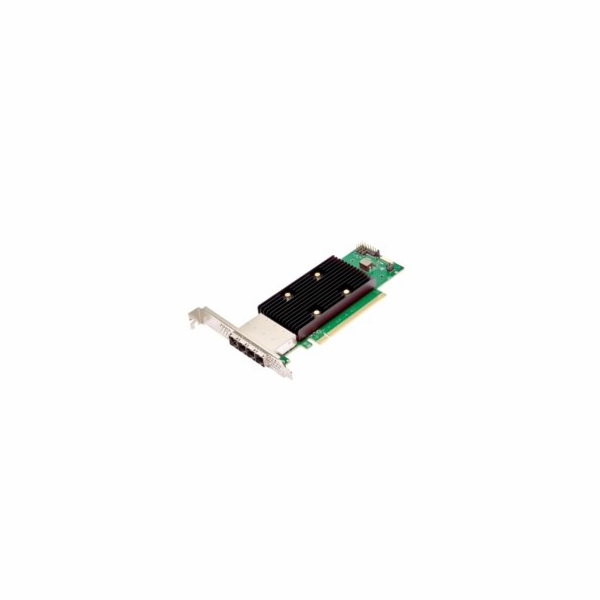

eHBA 9600W-16e Tri-Mode Storage Adapter
x16, PCIe 4.0 eHBA features 16-wide external ports for high performance and increased connectivity
The 9600W-16e Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9600W-16e eHBA delivers the performance and scalability needed by critical applications.
Low profile, half-length x16 PCIe Gen 4.0 adapter
Connect up to 240 SAS/SATA devices or 32 NVMe devices
Hardware Secure Boot and SPDM Attestation support
SMART monitoring
Drive temperature monitoring
SafeStore key management for attached SEDs
Universal Bay Management (UBM) Ready
Product
Manufacturer Part #
What's in the Box
eHBA 9600W-16e
05-50108-00
9600W-16e eHBA, Low Profile Bracket, FH (attached)
Specification
Value
Lifecycle
Active
Distributor Inventory
No
Brackets
Full height and low profile
Data Transfer Rates
22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
Devices Supported
SAS/SATA: 240; NVMe: up to 32
External Connectors
4 x4 SFF-8644 (SlimSAS)
External Ports
16
Generation
24G
Host Bus Type
PCIe Gen4 x16
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
> 5,000,000 hours at 40° C
Operating Humidity
5% to 90% Non-condensing
Operating Temperature°C
0°C to 55°C
OS Support
Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions
6.600" x 2.712"
Regulatory Certifications
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
What's in the box
9600W-16e eHBA, Low Profile Bracket, Bracket, FH (attached)
