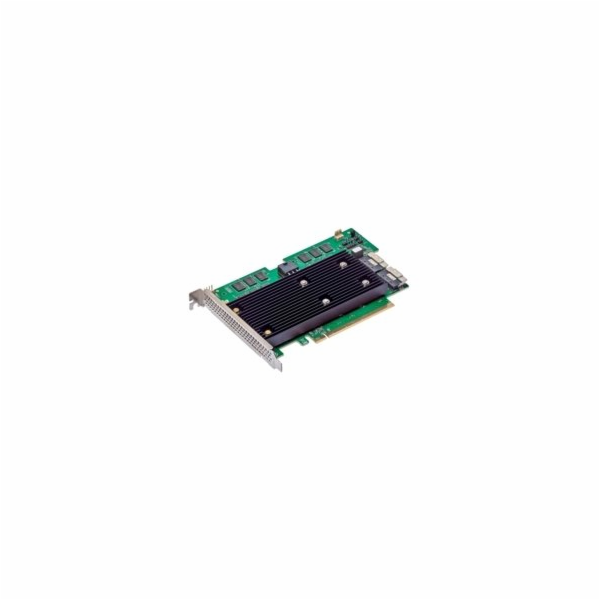

MegaRAID 9670W-16i
Deliver breakthrough RAID rebuild times with 2x the bandwidth and more than 2x the RAID 5 IOPS
The MegaRAID 9600 series is the third generation of Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency and 60x increase in performance during rebuilds over the previous generation.
The MegaRAID 9670W-16i based on the SAS4116W RAID-on-Chip (RoC) delivers more than 4x increase in RAID5 Random Write Ops and twice the bandwidth over the previous generation. The 9670W-16i’s advanced thermal solution enables these major performance enhancements without increasing airflow requirements when compared to previous generation adapters. Users can incorporate the 9670W-16i into existing platforms to enable breakthrough SSD performance without burdening the system with additional cooling and airflow requirements.
Key features include:
Low profile, half-length x8 PCIe Gen 4.0 adapter
Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
SFF-8654 (SlimSAS) x8 connectors
Form-factor friendly cable exit
Hardware Secure Boot and SPDM Attestation support
Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
SFF-TA-1005 Universa Bay Management (UBM) Ready
Add more protection and peace of mind with CacheVault flash cache protection
Product
Manufacturer Part #
What's in the Box
MegaRAID 9670W-16i
05-50113-00
MegaRAID 9670W-16i, FH (attached), LP bracket
CVPM05
05-50039-00
CacheVault Power Module (CVPM05) with 24" remote extender
Specification
Value
Lifecycle
Active
Distributor Inventory
No
Cache Memory
8GB
Cache Protection
CacheVault CVPM05
Connectors
2x8 SFF-8654
Data Transfer Rates
22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
Devices Supported
SAS/SATA: 240, NVMe: 32
Generation
24G
Internal Ports
16
Management Software
LSI Storage Authority (LSA), StorCLI2 (Command-Line Interface), HII (UEFI Human Interface Infrastructure
MTBF
>3,000,000 hours at 40° C
Operating Humidity
5% to 90% Non-condensing
Operating Temperature°C
0°C to 55°C
OS
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
OS Support
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD, Linux (Oracle, SuSE, Red Hat)
Physical Dimensions
6.1279" x 4.3759" (155.65mm x 111.15mm)
RAID Levels
0, 1, 5, 6, 10, 50, 60
Regulatory Certifications
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE
Typical Power
25W
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
