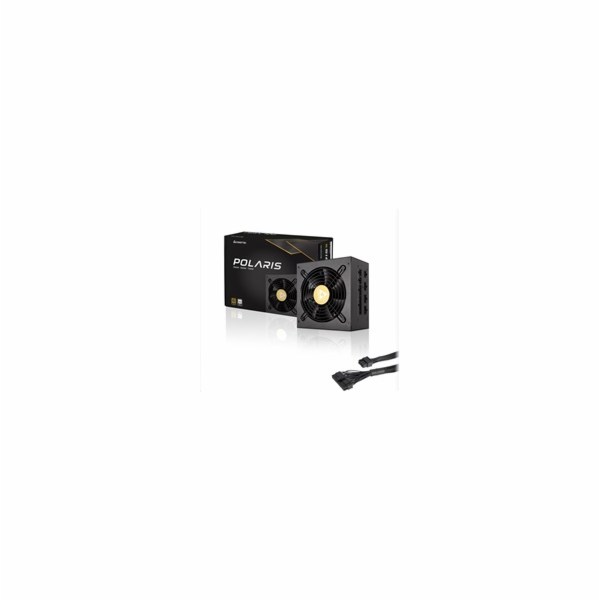

Chieftec Polaris power supply unit 550 W 20+4 pin ATX PS/2 Black
2397 Kč
1981 Kč bez DPH
Dostupnost: Dodání 3 dny
Part no.: ZDLCHFOBU0086
Kód produktu: 76527539
Výrobce: Chieftec
Váha: 2,23 kg
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
80 PLUS Gold certified efficiency
Fully modular cable management
High power density design for compact size
LLC half-bridge converter with DC-to-DC technology
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.
With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
TECHNICAL SPECIFICATIONS
PERFORMANCE
Model
Polaris 550W
Article no.
PPS-550FC
EAN code
0753263076427
Weight (without/with package)
2.025 kg / 2.330 kg
AC Input
100-240V / 8.0A
Frequency
50-60Hz
+5V
20A
+3,3V
20A
+5V & +3,3V combined
105W
+12V 1
45.8A / 550W
+12V 2
-
+12V 1 & +12V 2 combined
-
P.F.
>0,9
-12V
0,3A / 3,6W
+5VsB
3.0A / 15W
Maximum Power
550W
CONNECTORS
20+4PIN ATX
1
8 PIN EPS (4+4)
2
8 PIN PCIe (6+2)
2
SATA
6
MOLEX
3
FLOPPY
1
CABLE LENGHT
20+4PIN ATX
650
8 PIN EPS (4+4)
650/150
8 PIN PCIe (6+2)
500/150
SATA
2x 450/150/150
MOLEX
450/150/150/150
FLOPPY
Molex
FEATURES
Specification
ATX 12V 2.4
Form factor
PS II
Efficiency
80 PLUS Gold
Dimension (DxWxH)
140mm x 150mm x 87mm
Fan
120mm silent fan
Security
AFC (Automatic Fanspeed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over Temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) OCP (Overcurrent protection) UVP (Undervoltage protection)
Warranty
24 Months
Popis produktu
PPS-550FC80 PLUS Gold certified efficiency
Fully modular cable management
High power density design for compact size
LLC half-bridge converter with DC-to-DC technology
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.
With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
TECHNICAL SPECIFICATIONS
PERFORMANCE
Model
Polaris 550W
Article no.
PPS-550FC
EAN code
0753263076427
Weight (without/with package)
2.025 kg / 2.330 kg
AC Input
100-240V / 8.0A
Frequency
50-60Hz
+5V
20A
+3,3V
20A
+5V & +3,3V combined
105W
+12V 1
45.8A / 550W
+12V 2
-
+12V 1 & +12V 2 combined
-
P.F.
>0,9
-12V
0,3A / 3,6W
+5VsB
3.0A / 15W
Maximum Power
550W
CONNECTORS
20+4PIN ATX
1
8 PIN EPS (4+4)
2
8 PIN PCIe (6+2)
2
SATA
6
MOLEX
3
FLOPPY
1
CABLE LENGHT
20+4PIN ATX
650
8 PIN EPS (4+4)
650/150
8 PIN PCIe (6+2)
500/150
SATA
2x 450/150/150
MOLEX
450/150/150/150
FLOPPY
Molex
FEATURES
Specification
ATX 12V 2.4
Form factor
PS II
Efficiency
80 PLUS Gold
Dimension (DxWxH)
140mm x 150mm x 87mm
Fan
120mm silent fan
Security
AFC (Automatic Fanspeed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over Temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) OCP (Overcurrent protection) UVP (Undervoltage protection)
Warranty
24 Months
