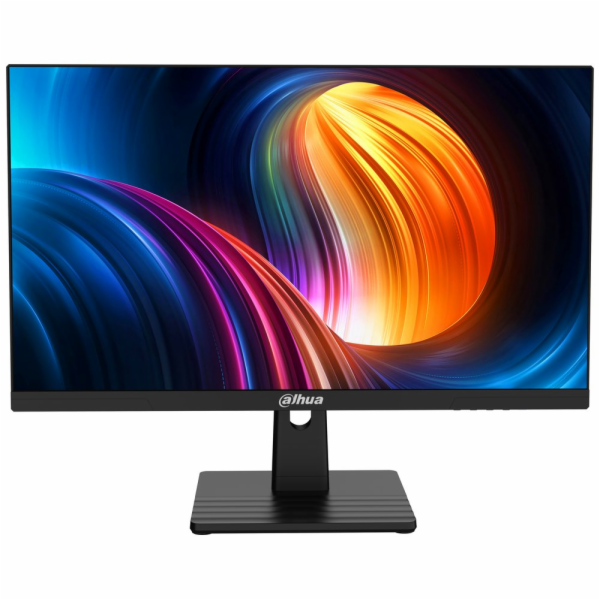

Dahua monitor LM25-B221B 24,5" IPS/1920x1080/1ms/144Hz/300nits/1500:1/DP/HDMI/černý

Display

Model

DHI-LM25-B221B

LCD Technology

IPS

Backlight

ELED

Screen Size

24.5 inch

Aspect Ratio

16:9

Viewing Size

543.744 (H) × 302.616 (V) mm

Screen-to-Body Ratio

?90%

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.2832 mm × 0.2802 mm (0.01" × 0.01")

Pixels Per Inch

89.91

Resolution

1920 (H) × 1080 (V)

Refresh Rate

144 Hz

Display Color

16.7M

Color Gamut

85% NTSC (typ.)

Brightness

300 cd/m2 (typ.)

Contrast Ratio

1,500: 1

Response Time

MPRT 1 ms

Lifespan

30,000 hrs

Surface Treatment

Haze 25%, 3H

Device Ports

Input Port

1 × DP 1.4 (1920 × 1080@144 Hz), 1 × HDMI 2.0 (1920 × 1080@144 Hz)

Output Port

1 × Audio out port

Power & Environmental Conditions

Power Supply

12 VDC, 2.5 A

Power Type

External power adapter

Power Consumption

18 W (basic), 19 W (typ.), 23.8 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–85% (RH), non-condensing

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH), non-condensing

General

Inclined Angle

-5° ± 2° / 20° ± 2°

Product Dimensions

557.7 mm × 330.6 mm × 58.1 mm (21.96" × 13.02" × 2.29") (W × H × D), without wall-mount bracket

Package Size

620 mm × 431 mm × 134 mm (24.41" × 16.97" × 5.28") (W × H × D)

Unilateral Splicing

U/L/R/D: 2.1 mm/2.1 mm/2.1 mm/19.6 mm

Net Weight

2.9 kg (6.39 lb)

Gross Weight

3.9 kg (8.60 lb)

Casing Color

Black

Control Mode

Five-button

Status Indicator Light

Yes

Wall Mount VESA

100 mm × 100 mm (3.94" × 3.94")

Accessory

Power adapter, base, HDMI cable, user s manual (QR code), legal and regulatory information, etc.

Optional Accessory

Wall mount
