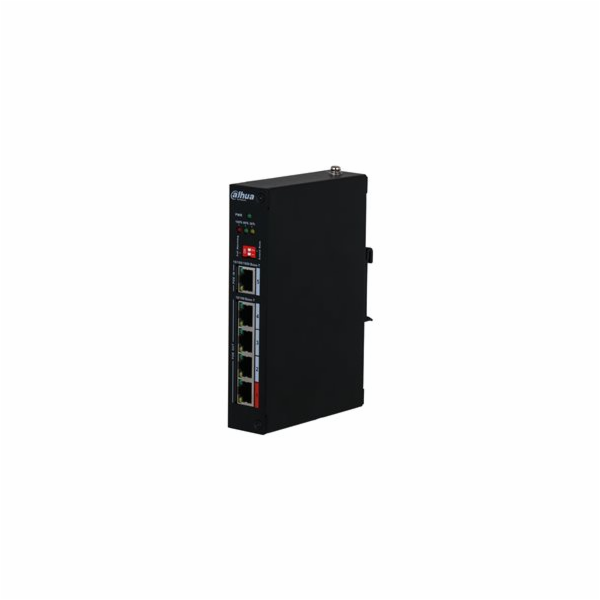

Dahua PFT1500 5-Port PoE Extender with 4-Port PoE Out and 1-Port PoE In

4× 100 Mbps PoE Ethernet ports, 1 × 1000 Mbps PoE Ethernet port.
All ports meet the requirements of IEEE802.3af and IEEE802.3at standards. The red ports also conform with Hi-PoE and IEEE802.3bt standards.
250 m long-distance PoE transmission, which can be enabled by the DIP switch.
PoE Watchdog for real-time detection of terminal device status.
Fanless.
Full-metal.
Lightning Protection: common mode: 4 kV, differential mode: 2 kV.
Desktop mount and DIN-rail mount.

Hardware

PoE

Yes

Ethernet Port

4

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Description of Function Slots

Port1-4: 4*RJ45 10/100 Mbps
Port5: 1*RJ45 10/100/1000 Mbps

Operating Temperature

–30 °C to +65 °C

Operating Humidity

5%–95% (RH)

Storage Temperature

–40 °C to +70 °C

Storage Humidity

5%–95% (RH)

Power Consumption

Idling: 5 W
Full load: 90 W

Performance

Layer

Layer 2

Management Type

No

MTBF

66.37

Switching Capacity

2.8 Gbps

Packet Forwarding Rate

2.08 Mpps

Packet Buffer Size

1 Mbit

Jumbo Frame

9K Byte

MAC Table Size

4K

Communication Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3az

PoE

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power

Port 2-4 ? 30 W, port 1 ? 90 W, Full load ? 90 W

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE Transmission

Yes

Port

IEEE 802.3x Flow Control

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.47 kg (1.03 lb)

Gross Weight

0.65 kg (1.43 lb)

Product Dimensions

150 mm × 100 mm × 30 mm
(5.9" × 3.9" × 1.2")

Packaging Dimensions

265 mm × 238 mm × 76 mm
(10.43" × 9.37" × 2.99")

Casing

Metal

Installation

Desk Mount
Guide Rail Mount

Certifications

CE; FCC
