Železné kovy: ano
Neželezné kovy: ano
Dřevěné konstrukce: ano
Živé kabely: ano
Plastové trubky naplněné vodou: ne
Plastové trubky, prázdné: ne
Typ baterie / aku: Lithium-Ionen
Potřebný počet baterií: 1
Včetně baterií: 1
Typ: Detektor šroubů
Barva: černá / fialová
Šířka (mm): 63
Výška (mm): 139
Hloubka (mm): 25
Hmotnost (g): 138
Maximální hloubka umístění (mm): 120
Hloubka detekce oceli (mm): 120
Hloubka detekce živého kabelu (mm): 50
Hloubka detekce dřevěné spodní konstrukce (mm): 38
vypínací automatika: ano

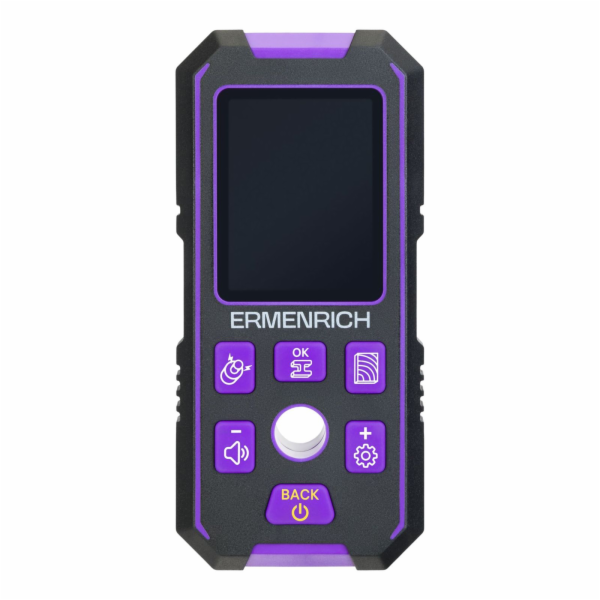

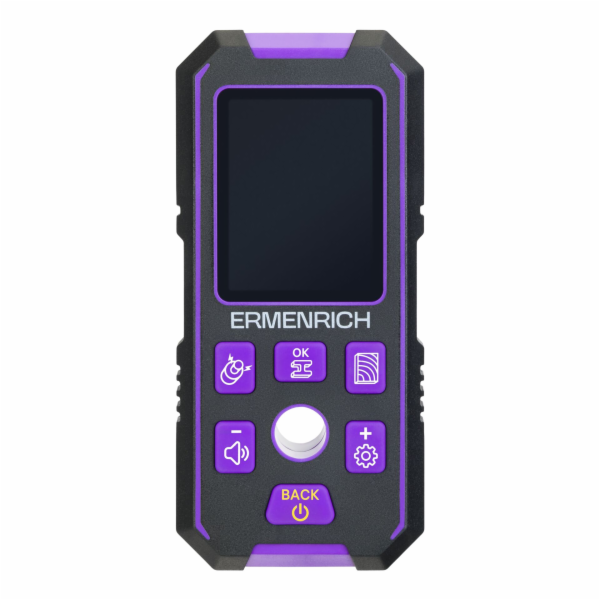

Ermenrich Ping SM70 Bolt Detector
The Ermenrich Ping SM70 stud detector is a device for detecting metal objects (pipes, rebar, self-tapping screws), current-carrying cables and wooden structures hidden in walls, floors and ceilings. It ensures safety during construction, repair, expansion and installation work. This prevents, for example, the drilling accidentally hitting current-carrying lines or damaging the drill on a metal part. The Ermenrich Ping SM70 bolt detector is a useful tool not only for professional purposes but also for home use.
It is a compact device with push button control and integrated LCD display. The display shows the symbols for the operating mode and a signal bar indicating how close a bolt or wire is to the detector. The device will beep when it detects a bolt or wire, and you can disable the audible warning signals if necessary. The sensitivity and calibration functions are used to fine-tune the instrument.
The bolt detector is operated with a rechargeable battery.
Features:
Detection of ferrous and non-ferrous metals, metal and wood bolts, current-carrying cables
2.4-inch color display, control by pressing a button
Sensitivity setting, calibration, audible warning signals, signal bar on the display
High-strength ABS plastic housing, power supply via rechargeable battery
Technical data:
Detection mode for metal and wood bolts
Maximum detection depth of metal/wood bolts: 38 mm
Detection mode for power-carrying cables
Maximum depth of detection: 50 mm
Metal mode
Maximum depth of detection (metal): 100mm(non-ferrous metals), 120mm(ferrous metals)
LCD display: HD color, 2.4 inch, resolution 240 x 320 pixels
Calibration: automatic
Audible warnings
Power source: 390 mAh lithium battery, 3.7 V, charging via a 5 V, 1 A DC adapter (not included) and USB-C cable (included)
Low battery indicator
Automatic shutdown
Housing: polycarbonate, robust ABS plastic
Temperature range: 0 ... + 50 °C
Dimensions: 63 x 25 x 139 mm
Colour: black / purple
Weight: 138 g
