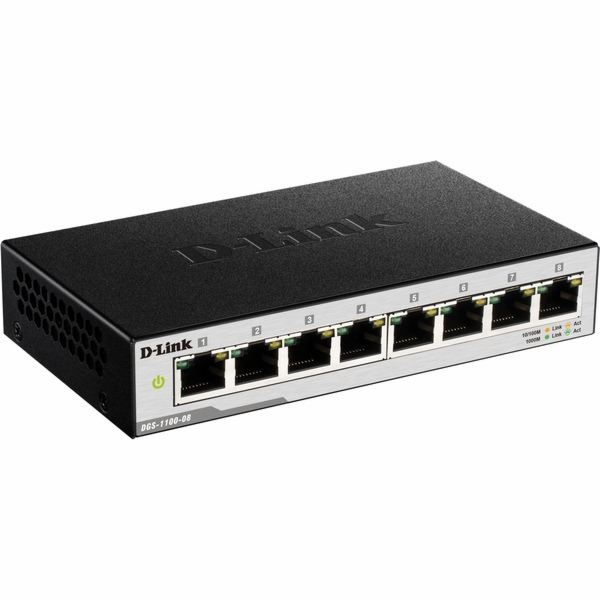

DGS-1100-08, Switch

Počet Gigabit-Portů: 8
PoE (Power over Ethernet): ano
Možnost montáže na stojan: ano
IEEE 802.3 10-BASE-T, Ethernet: ano
IEEE 802.3ab 1000-BASE-T, Gigabit Ethernet: ano
IEEE 802.3af Power Over Ethernet (PoE): ano
IEEE 802.3at Power over Ethernet Plus (PoE+): ano
IEEE 802.3az Energy Efficient Ethernet: ano
IEEE 802.3u 100-BASE-TX, Fast Ethernet: ano
IEEE 802.3x Flow Control (Full-Duplex Flow Control): ano
Typ: Switch
Barva: černá
Šířka (mm): 150
Výška (mm): 28
Hloubka (mm): 97
Hmotnost (g): 340

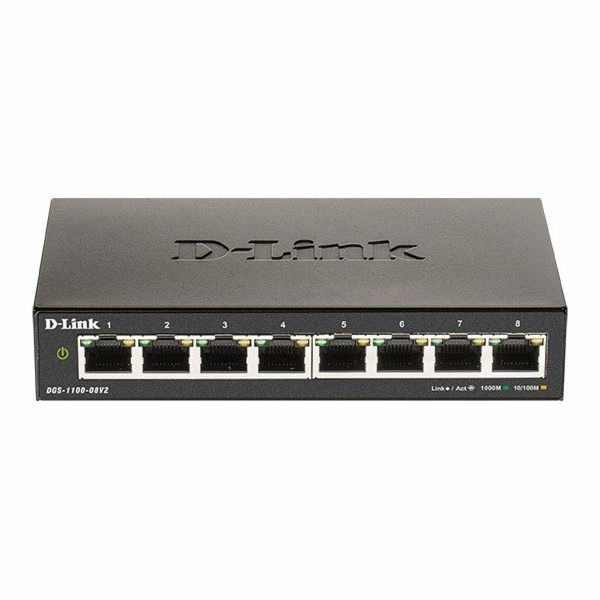

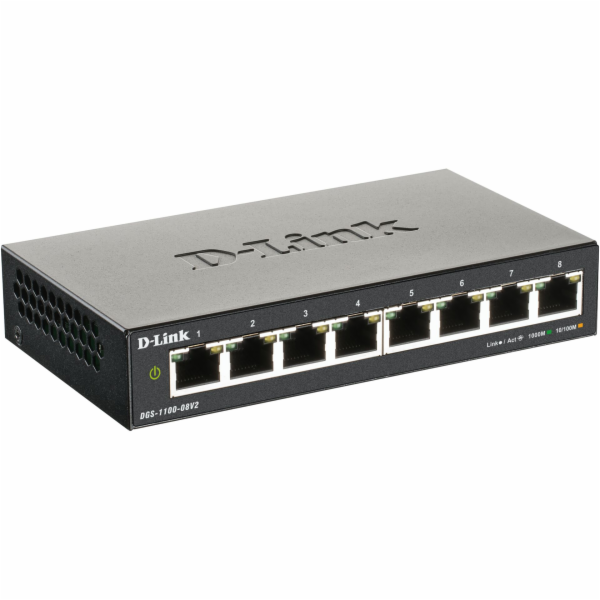

D-Link DGS-1100-08V2/E, 8-Port Layer2 Gigabit Smart Managed Switch PoE

The user-friendly web interface of the DGS-1100 switches allows you to conveniently control layer 2 functions such as VLANs, spanning tree protocol (STP) and link aggregation (static). With its strong security features, such as IGMP snooping, static MAC addresses and storm control, the DGS-1100 series is versatile in environments that require quick and easy deployable solutions without additional complexity.

Features:


Simple layer 2 management
Web-based user interface
Number of connections: 8x 10 / 100 / 1000 Gigabit Ports RJ-45
Fanless
Functions:

IEEE 802.3 for Ethernet
IEEE 802.3u for Fast Ethernet
IEEE 802.3ab for Ethernet
IEEE 802.3af (for DGS-1100-05PDV2)
IEEE 802.3at (for DGS-1100-08PV2/08PLV2)
Auto-negotiation
Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps)
Auto MDI/MDIX
IEEE 802.3x Flow Control supports full-duplex mode
IEEE 802.3az compliant
Port 1 + 2 with PoE IEEE 802.3af 18W input 802.3at, 8W with 802.3af


Dimensions: 150 x 97 x 28 mm
Colour: black
