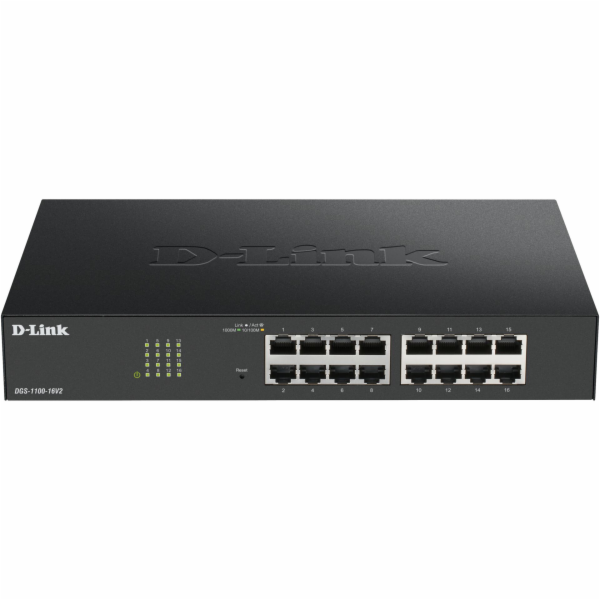

DGS-1100-16V2/E, Switch

Počet Gigabit-Portů: 16
Jumbo rámeček: 9K (max.)
PoE (Power over Ethernet): ne
Možnost montáže na stojan: ano
IEEE 802.3 10-BASE-T, Ethernet: ano
IEEE 802.3ab 1000-BASE-T, Gigabit Ethernet: ano
IEEE 802.3af Power Over Ethernet (PoE): ano
IEEE 802.3az Energy Efficient Ethernet: ano
IEEE 802.3u 100-BASE-TX, Fast Ethernet: ano
IEEE 802.3z 1000-BASE-SX, Gigabit Ethernet: ano
Typ: Switch
Barva: černá
Šířka (mm): 280
Výška (mm): 180
Hloubka (mm): 44
Hmotnost (g): 1210

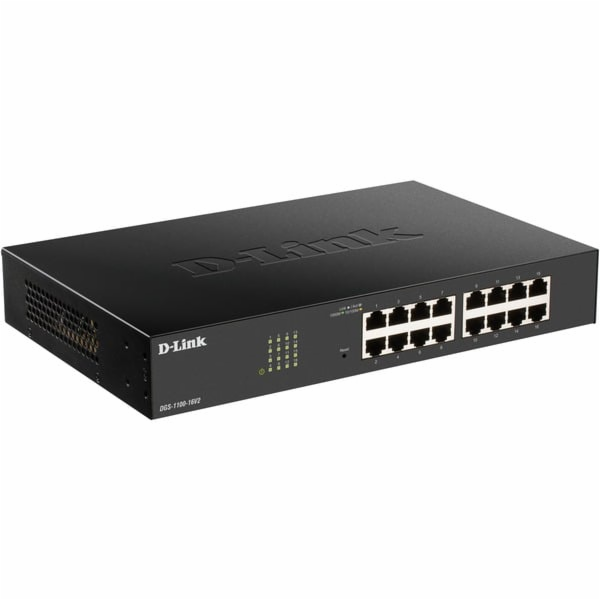

D-Link DGS-1100-16V2/E 16-Port Layer2 Smart Gb Sw

The D-Link DGS-1100-16V2/E is a compact 16-port gigabit switch with intelligent Layer 2 capabilities, ideal for small to medium-sized networks with a focus on energy efficiency and easy management. It offers 16 RJ-45 gigabit ports, works fanless for low-noise operation and supports VLANs, QoS and IGMP snooping for optimized data traffic. Thanks to D-Link Green technology and IEEE 802.3az, the switch saves power without sacrificing performance. Management is conveniently done via a web-based interface or the D-Link Network Assistant.

Features:


16x 10/100/1000BASE-T RJ-45 ports
Switching capacity: 32 Gbit/s
Redirect rate: 23.81 Mpps
MAC address table: 8000 entries
Jumbo frames: up to 9216 bytes
VLAN support: up to 128 VLAN groups / 4094 VLAN IDs
QoS with 4 queues per port
IGMP Snooping, Port Mirroring, LACP, STP, RSTP
Auto Surveillance VLAN & Voice VLAN
DHCP Client, ARP Spoofing Prevention, Port Security
Web GUI, SNMP, D-Link Network Assistant
Fanless design for quiet operation
Energy efficient thanks to D-Link Green technology
Rack Mountable (1U)
Operating temperature: -5 °C to +50 °C
Dimensions: about 280 x 180 x 44 mm
Weight: about 1.21 kg
