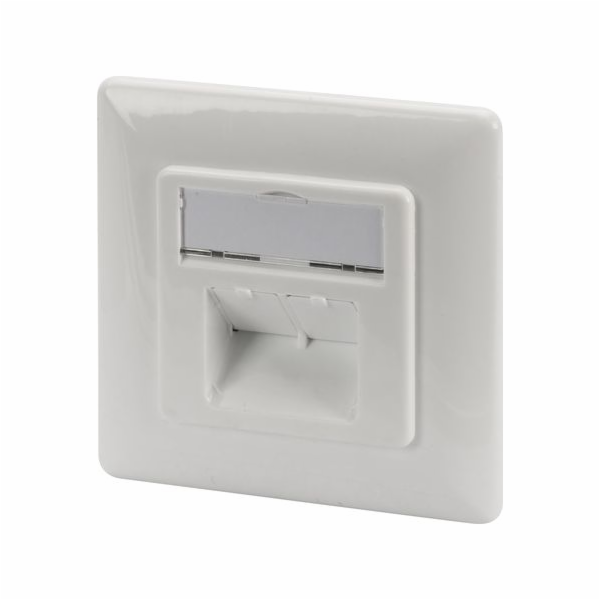

Digitus CAT 6A třída EA síťový výstup. Ší. -DN-9007-1

CAT 6A Class EA network outlet, shielded, 2x RJ45 LSA, čistá bílá, flush mount, vert. cable install. Future-oriented standards and high-end quality for your network. DESCRIPTION CAT 6A network outlets z DIGITUS® jsou design compatible s společným switch. Je certifikován v CAT 6A ANSI/TIA 568 a ISO/IEC 11801, EN 50173 a 2 shielded RJ45 sockets. The cable installation takes place via LSA strips, color coded acc. EIA/TIA 568 A & B. TECHNICAL DETAILS Transmission property: Category 6A Area aplikace: Up to 500 MHz, 10GBase-T Norms: ISO. 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable pro instalaci v trunkingu, povrchu a flush mount RJ45 female, 8P8C coded according to EIA/TIA 568 A & B Integrated strain relief for instalation cables Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing Stran relief 0x-0 50 x 50 mm Frame: 80 x 80 mm Centrální deska s integrovaným dusem covers Design kompatibilní s kombinací switch ranges 94V-0 RJ45 female contact: Tinned phosphor bronz, 0.5 µ gold-plated contact RJ45 shielding: Tinned bronze LSA terminál klamp: Krone LSA+, UL 9 bronze Conductor deska: FR4, UL 94V-0 Physical properties: Insertion force: 30N Max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operační temperature: -20°C to +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid a stranded conductor Insulation resistance: > 500 MOhm Contact resistance: <_ 20 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) No compatible s R&M freenet patch cords Barva: White RAL9003
