Digitus Modular Jack, RJ45, CAT6, nestíněný, LSA, RJ45 F

Digitus Modular Jack, RJ45, CAT6, nestíněný, LSA, RJ45 F
127 Kč
105 Kč bez DPH
Dostupnost: Skladem v eshopu
Part no.: DN-93601
Kód produktu: 6394428
Výrobce: Digitus
Váha: 0,01
Záruka: 23 měsíců
Popis produktu: Best performance and link quality for your network.

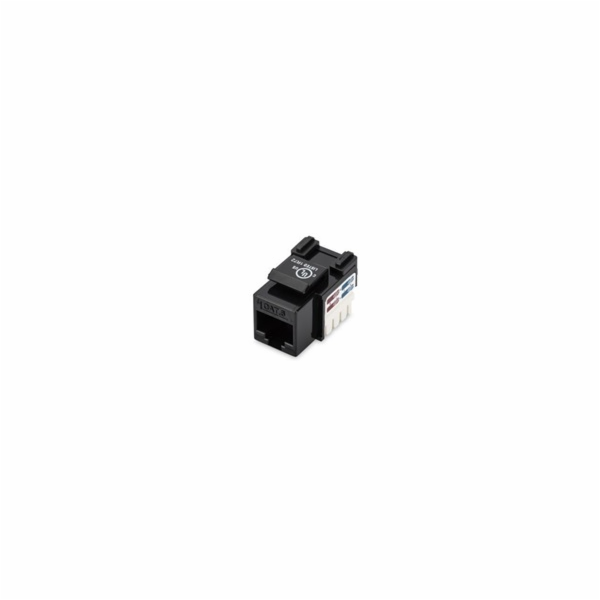

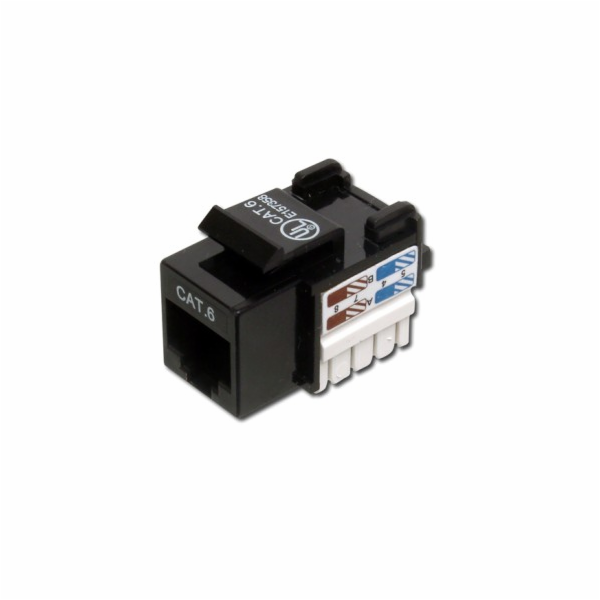

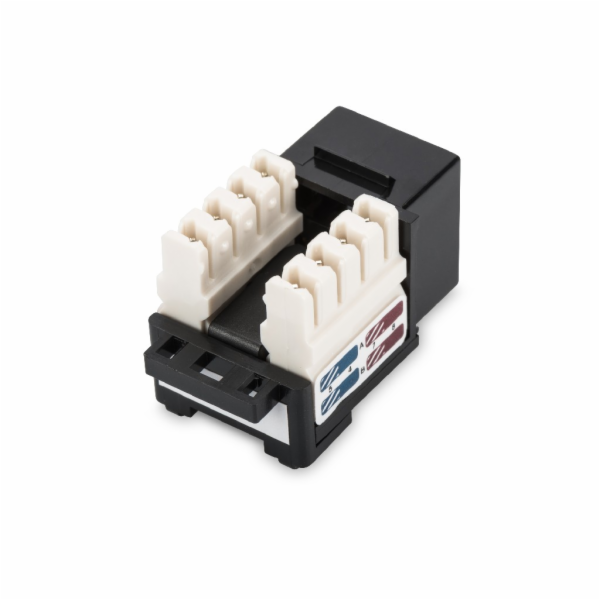

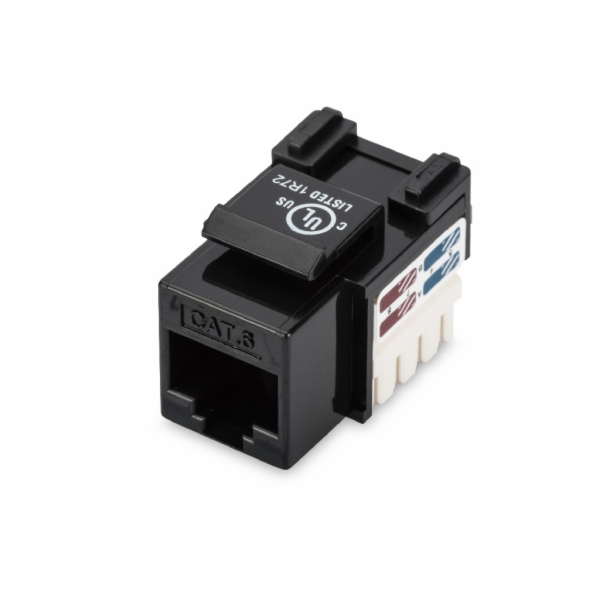

DIGITUS CAT 6 Keystone Jack, unshielded, RJ45 to LSA, color black

The "DN-93601" from DIGITUS® is an unshielded CAT 6 Keystone Module which provides best performance and link quality for your network. It is tested with Link Performance Class E, for up to 250 Mhz, 3P Channel Link and Permanent Link, EN 50173 and ISO/IEC 11801. The cable installation takes place via LSA, color coded acc. EIA/TIA 568 AB.

Best performance and link quality for your network.

Transmission properties: Category 6
Area of application: Up to 250 MHz, 1GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A B
Cable fixing with cable tie
Technical properties:
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Kvůli rozměrům nevhodné pro použití s panely A-PAN-24-MOD-S-B a A-PAN-24-MOD-
