Zasilacz/Adapter PoE+ 802.3at, max. 48V 30W Gigabit 10/100/1000Mbps, aktywny

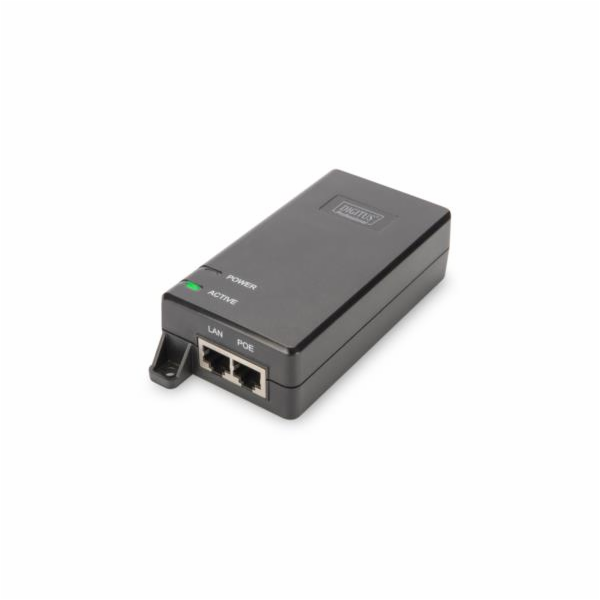

DIGITUS PoE+ Injector, 802.3at, 10/100/1000 Mbps Output max. 48V, 30W

The Digitus PoE Injector allows you to minimize cabling during installation of PoE-ready devices such as IP network cameras. Data supply and power supply to the devices is accomplished using a single Ethernet cable. This makes laying a separate power cable unnecessary and allows you to extend your network to places where there are no outlets or power cables. The Injector is completely compliant with the IEEE802.3at standard and delivers an output power of 30 watts.

Reduce cabling for Wireless APs, IP Phone and any PoE-ready device

Complies with the 802.3at PoE+ and the 802.3af PoE standard
Easily merge of power and data cables into a single cable
Extend your network to places where there are no power supply cables or sockets available
no setup needed
The output is equipped with a current limit, a short-circuit fuse, and automatic terminal device recognition and classification.
Supports all IEEE 802.3at-compliant PoE devices (such as access points, VoIP telephones, and IP cameras)
Transmission range of up to 100 m – with an additional PoE extender, this can be increased to up to 400 m
Internal consumption (full loaded): 7.0 W max.
Input: 1x RJ-45 (data)
Output: 1x RJ-45 (power and data)
Data output: 100/100/1000 Mbps Gigabit
Power output: 30 W
Output voltage: 48 V DC
Operating temperature range: -5 °C to +40 °C
Dimensions: 140 mm x 63 mm x 32.5 mm
Weight: 200g

Package Content
PoE Injector
QIG (quick installation guide)
Power Supply



Výrobek je dodáván s manuálem pouze v anglickém jazyce.
