D-Link DAP-2610 DualBand AC1300 Wave2 GbE PoE AP

Functions & Features

Features

High-performance Connectivity

IEEE 802.11ac Wave 2 wireless1
Up to 1300 Mbps1 speed
MU-MIMO with beamforming
Band steering
Gigabit LAN port

Extensive Management

Web, SSL, SSH and Telnet management
SNMP v1, v2c, v3
D-Link Central WiFiManager support for additional configuration options
AP Array utility support

Trusted Security Features

WPA/WPA2 Personal/Enterprise
64/128-bit WEP
MAC filter and WLAN partitioning
Local/POP3/RADIUS/PassCode/LDAP authentication for captive portal

Convenient Installation

Small form factor design for easy placement
Supports 802.3af Power over Ethernet for remote installation

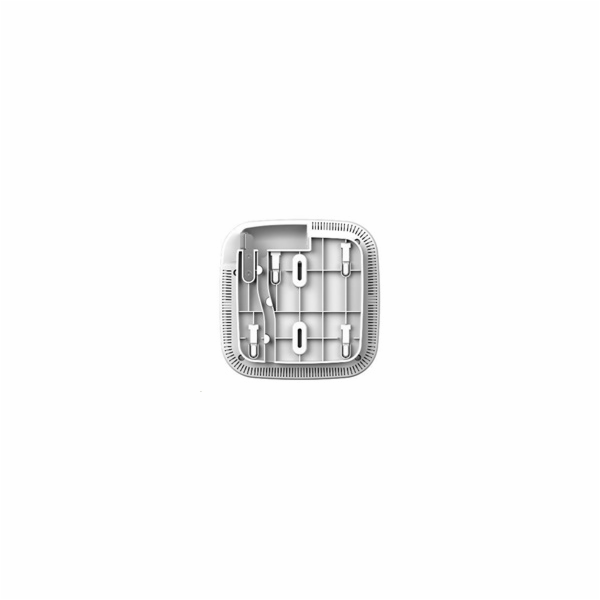

Wall and ceiling mountable2

Technical Specifications

General

Device Interfaces

IEEE 802.11a/b/g/n/ac Wave 2 wireless1
1 Gigabit LAN (supports PoE)

Standards

IEEE 802.11a/b/g/n/ac1
IEEE 802.3u/ab
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3af Power over Ethernet

Antennas

2 internal dual-band 3 dBi omni antennas

Operating Frequency3

2.4 GHz band: 2.4 to 2.4835 GHz
5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz

Maximum Output Power

20 dBm for 2.4 GHz
20 dBm for 5 GHz

Data Signal Rate

2.4 GHz
Up to 400 Mbps1
5 GHz
Up to 867 Mbps1

Functionality

Security

WPA-Personal
WPA-Enterprise
WPA2-Personal
WPA2-Enterprise
WEP 64/128-bit encryption
SSID broadcast disable
MAC address access control
Network Access Protection (NAP)
Internal RADIUS server

Network Management

Telnet
Secure Telnet (SSH)
Web (HTTP)
Secure Socket Layer (SSL)
Traffic control
SNMP v1/v2c/v3
D-Link Central Wi-Fi Manager
AP Array

LEDs

Power/status

Physical

Dimensions

170 x 170 x 28 mm (6.69 x 6.69 x 1.1 inches)

Weight

314 g (0.69 lbs) without mounting base
370.6 g (0.82 lbs) with mounting base

Power Supply

External power adapter: 12 V/1 A (not included)
IEEE 802.3af PoE

Maximum Power Consumption

12 W

Temperature

Operating: 0 to 40°C (32 to 104°F)
Storage: -20 to 65°C (-4 to 149°F)

Humidity

Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing

Meantime Between Failure (MTBF)

>30,000 hours

Certifications

FCC
IC
CE4
UL
Wi-Fi Certified
