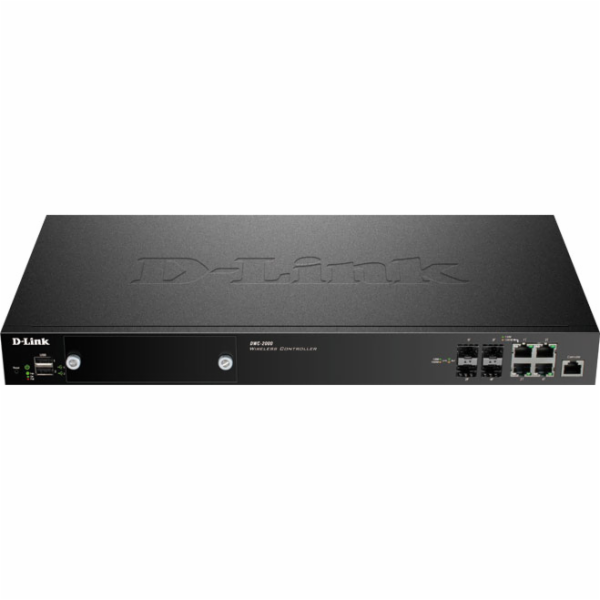

D-Link DWC-2000 4xGLAN Wireless Switch, 64-256AP

Informace k záruce:

Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.
Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.

http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in

PŘEHLED/OVERVIEW
The D-Link DWC-2000 Wireless Controller is a centralized Wireless LAN manager designed specifically for education, hospitality, and medium-to-large enterprises. Out of the box, it can manage up to 64 compatible D-Link Unified Wireless Access Points. With optional upgrade licenses, it can support up to 256 access points per controller, and up to 1,024 access points in a controller peer group, making it cost-effective mobility solution suitable for medium to large scale deployments. Features such as auto-managed AP discovery and single-point management allow users to achieve enterprise class networking without the burden of executing massive and complex configurations. The guest account generation function manages guest user bandwidth and accessibility to network resources. With a robust and comprehensive security detection system, the DWC-2000 manages associated APs by blocking potential attacks from unauthorized users and appliances, which is particularly crucial in wireless environments.

SPECIFIKACE/SPECIFICATIONS
Interface
Ports
* 4 Gigabit RJ-45/SFP Combo Ports

USB
*2 USB 2.0 ports

Console Port
*1 RJ-45

Expansion Slot
*Reserved for future use

Performance
Maximum Access Points per Unit
*64/ 256 (default/ upgrade)

Maximum Access Points per Peer Group
*256/ 1024 (default/ upgrade)
* Concurrent Captive Portal Authentication Users
*3072

Access Point Management
Model of Managed APs
*DWL-8610AP
*DWL-8600AP
*DWL-6600AP
*DWL-3600AP
*DWL-2600AP

AP Discovery & Control
*Layer-2
*Layer-3

AP Monitoring
*Managed AP
*Rogue AP
*Authentication Fail AP
*Standalone AP

Client Monitoring
*Authenticated Client
*Rogue Client
*Authentication Fail Client
*Ad-hoc Client

Centralized RF/ Security Policy Management
*Supported

Roaming
Fast Roaming
*Supported

Intra-controller/ Inter-controller Roaming
*Supported

Intra-subnet/ Inter-subnet Roaming
*Supported

Security
Wireless Security
*WPA Personal/Enterprise
*WPA2 Personal/Enterprise

Wireless Intrusion Detection & Prevention System (WIDS)
*Rogue and Valid AP Classification
*Rogue AP Mitigation

LAN Security
*802.1x port-based access control and guest VLAN

Authentication
*Captive Portal
*MAC Authentication

VLAN
VLAN Group
*Up to 255 entries

802.1q VLAN Tagging
*Supported

Subnet-based VLAN
*Supported

Port-based VLAN
*Supported

User Account Management
Permanent Account Authentication Method
*Local Database
*External RADIUS
*External LDAP
*External POP3
*External Windows Active Directory (wired only)

Temporary Account Authentication Method
*Local Database

Temporary Account Creation
*Single or batch account generation by system with customized active or usage expired time

Payment Gateway
*Authorize.net
*Paypal
*SecurePay
*World Pay

System Management
Web-based User Interface
*HTTP

Command Line
*Supported

SNMP
*v1, v2c, v3

Physical/Environmental
Power Supply
*100-240 V AC, 50-60 Hz Internal power supply

Max. Power Consumption
*26.95 W

Dimensions
*440 x 310 x 44 mm

Operating Temperature
* 0 to 40 °

Storage Temperature
*-20 to 70 °

Operating Humidity
*5% to 95%, Non-condensing

Emission (EMI)
*FCC Class A, CE Class A, C-Tick, IC

Safety
*cUL, LVD (EN60950-1)

Compatible D-Link Wireless Access Points
*DWL-8610AP Unified Concurrent Dual-band Access Point 802.11a/b/g/n/ac
*DWL-8600AP Unified Concurrent Dual-band Access Point 802.11a/b/g/n
*DWL-6600AP Unified Concurrent Dual-band Access Point 802.11a/b/g/n
*DWL-3600AP Unified Concurrent Single-band Access Point 802.11b/g/n
*DWL-2600AP Unified Concurrent Single-band Access Point 802.11b/g/n

Compatible D-Link Business Wireless Plus License
*DWC-2000-AP32-LIC Enable management of 32 additional APs
*DWC-2000-AP64-LIC Enable management of 64 additional APs
*DWC-2000-AP128-LIC Enable management of 128 additional APs
OMEZENÁ DOŽIVOTNÍ ZÁRUKA: Pro uplatnění omezené doživotní záruky, musí být produkt zaregistrován u společnosti D-Link do 30 dnů od zakoupení. V opačném případě bude záruka na produkt 5 let. Registraci lze provést prostřednictvím samoobslužného portálu: https://services.eu.dlink.com/home/main/SSPLogin.aspx?language=C Záruka končí 5 let po ukončení prodeje (oznámení EOL). Po dobu záruky je v ceně NBD služba pro odeslání náhradní jednotky následující pracovní den, požadavek se zadává přes uvedený Samoobslužný portál. Náklady na dopravu hradí výrobce.
