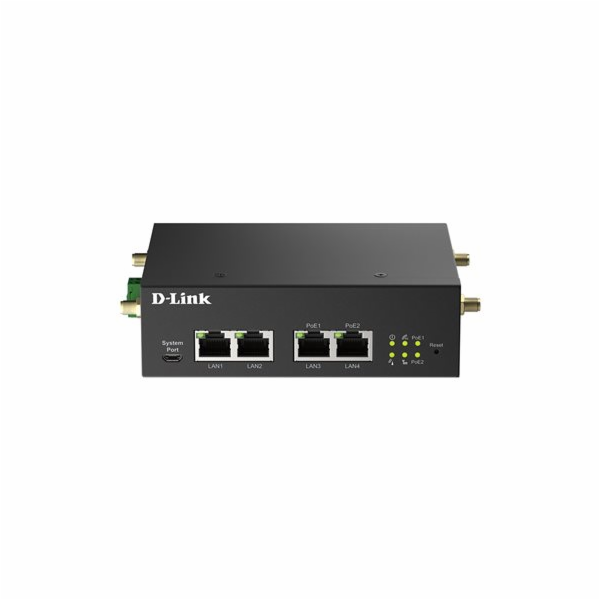

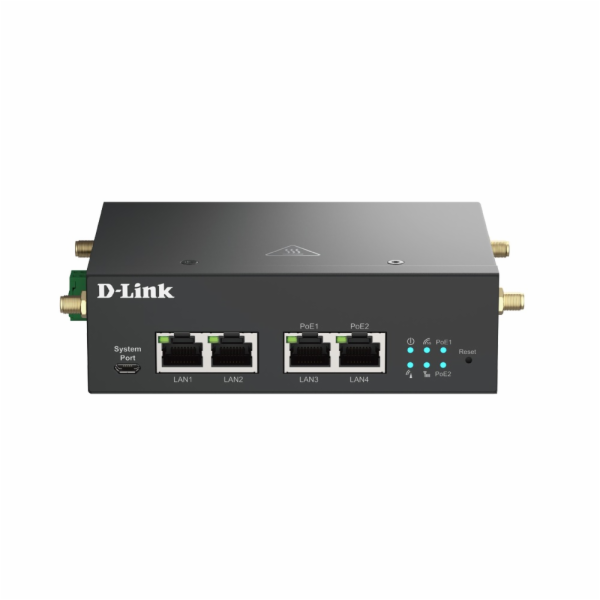

D-Link DWM-314-GP 5G

D-Link DWM-314-GP

Mobilní sítě: 4G LTE

Podporovaná pásma (5G):
EU SKU (HW A1): n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78
Global/US SKU (HW A2): n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/
n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79

Podporovaná pásma (4G LTE):
EU SKU (HW: C1):FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71, TDD: B38/B40/B41/B42/B43
US SKU (HW: C2): FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/
B25/B26/B28/B29/B30/B32/B66/B71, TDD: B34/B38/B39/B40/B41/B42/B43/B46(LAA)/B48

Slot pro SIM: 2x Micro SIM (3FF)

Rozhraní:
* Cellular Module: 5G NR/4G LTE 3GPP Rel. 16
* Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18)
* Ethernet: 2*LAN GE, 2*LAN GE with PoE-PSE 802.3at
* Power Input: DC 48-57V (TB)(2-pin)
* Antenna Connector: 4*SMA(F)-Cellular

Přenosové rychlosti:
* Gbps (DL) / 550 Mbps (UL)
* 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
* LTE: 1.6 Gbps (DL) / 200 Mbps (UL)

VPN funkce: OpenVPN
Administrace: WebUI, SSH, Command Script, D-Link D-ECS
Režimy WAN: NAT, ICMP Checking

Další síťové funkce:
* DHCP : DHCP Server
* Port Forward: Virtual Server
* DDNS: DynDNS, No-IP, Dynamic DO
* Routing: Static route, Routing information
* PoE: Power Control, ON/OFF by Network checking, Scheduled ON/OFF
* IPv4/v6

Rozměry: 131 x 99 x 40 mm

Záruka: 3 roky

Odkaz na stránky výrobce: https://www.dlink.com/cz/cs/products/dwm-314-gp-5g-multi-connect-poe-modem
