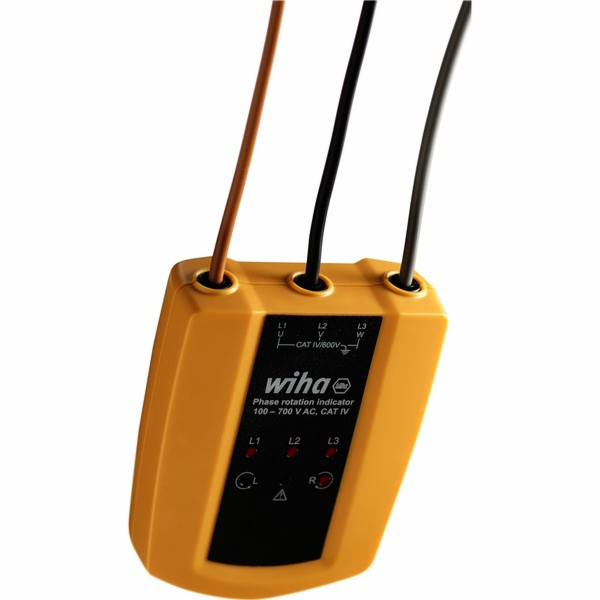

Drehfeldrichtungsanzeiger 45221, 100 - 700 V AC, Messgerät

Způsob provozu: Netzspannung
Displej: LED
Typ ochrany: IP40
Napětí (V): 400
Elektrický proud (mA): 3,5
Bluetooth: ne
Vhodné pro App: ne
WLAN: ne
Typ: Drehfeldrichtungsanzeiger
Barva: žlutá / černá
Délka (mm): 93
Rozměry: 93 x 75 x 31
Hmotnost (g): 216

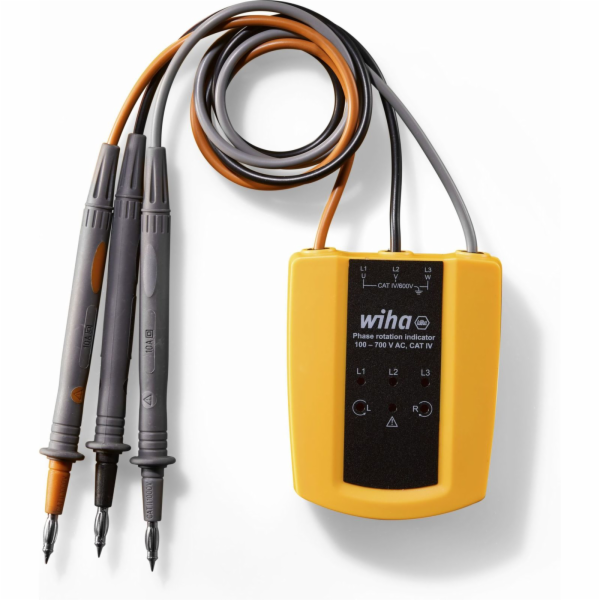

Wiha direction indicator 100 - 700 V AC, CAT IV

Features:


Direction of rotation indicator with integrated phase display
LED display for direction of rotation and voltage-carrying phases
Test probes for flexible application
No batteries required, uses mains voltage
Rotating field indicator LED: L, R
Phase display: LED L1, L2, L3
Warning: LED Warning
Safety categories CAT III (up to 1,000 V) and CAT IV (up to 600 V)
Dimensions: 93 x 75 x 31 mm
Measurement category: CAT IV 600 V
According to: IEC/EN 61010-1, IEC/EN 61577-7, IEC/EN 611010-031
Degree of protection: IP40
Voltage range phase against phase: 100 V - 700 V
Maximum input voltage per phase (Lx) versus neutral (N) (Volt): 400 V
Current consumption: 3.5 mA
Degree of contamination: 2
Test leads: 3
Surge protection: 600 V
Total length: 93 mm
Application: To determine the direction of rotation and to check the phases
