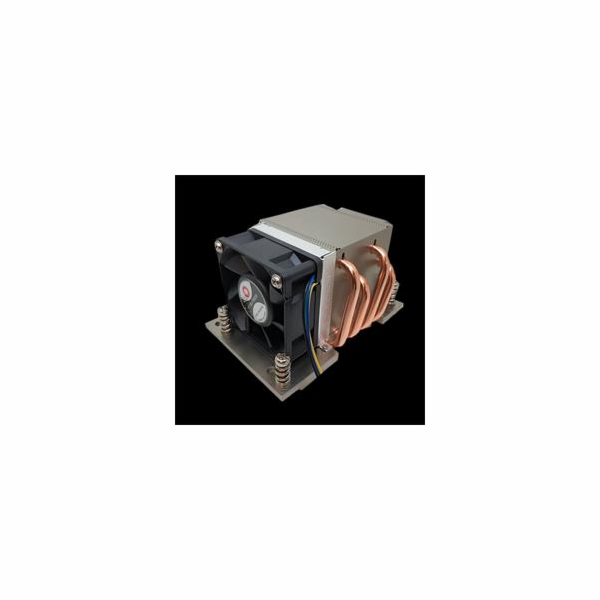

Dynatron A26 - Active 2U Cooler for AMD® WRX8/SP3/TRX4/TR4, 280W

Recommend for AMD® Ryzen Threadripper Processor, Socket sWRX8, sTRX4 , TR4,  and AMD® Epyc Processor Socket SP3, Side-Blower 60x60x25mm PWM fan, Support CPU power up to 280 Watts heat dissipation.



Additional Information





CPU Support

AMD



CPU Socket

sWRX8/sTRX4/TR4/SP3



Solution

2U Server and Up



Dimensions

119.0 x 79.0 x 65.0 mm



Weight

450g



Material

Aluminum Heatsink with Heatpipe Embedded



Fan Dimension

60 x 60 x 25 mm



Speed

At Duty Cycle 20%: 1600 ± 200 RPM
At Duty Cycle 50%: 4000 ± 10% RPM
At Duty Cycle 100%: 8000 ± 10% RPM



Power

At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 2.28 W
At Duty Cycle 100%: 7.2 W



Bearing

Ball Type, Double



Rated Voltage

12V



Air Flow

At Duty Cycle 20%: 8.85 CFM
At Duty Cycle 50%: 21.88 CFM
At Duty Cycle 100%: 43.75 CFM



Noise Level

At Duty Cycle 20%: 18 dBA
At Duty Cycle 50%: 37.9 dBA
At Duty Cycle 100%: 53 dBA



Air Pressure

At Duty Cycle 20%: 0.76 mm-H2O
At Duty Cycle 50%: 4.76 mm-H2O
At Duty Cycle 100%: 19.04 mm-H2O



Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)





*All product specifications and product images are subject to change without notice.
