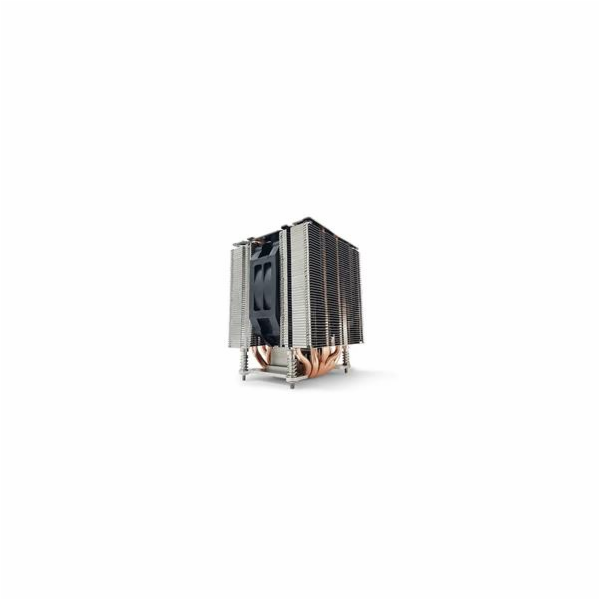

Dynatron A49 - Active Cooler for 4U Server for AMD® Socket AM4/AM5, up to 175W

Recommend for AMD® Ryzen Processor, Socket AM4, and AM5, 103 x 103 x 30 mm PWM Fan, HCC (Heatpipe Contact CPU) technology, Active Cooler for 4U Server & Up, Support 170 Watts CPU Base Power and Up to 175 Watts CPU Turbo Power. *Turbo Power is measured at 30°C.



Additional Information





CPU Support

AMD® Ryzen



CPU Socket

AM4/AM5



Solution

4U Server & Up



Dimensions

95 x 95 x 130 mm



Weight

710 g



Material

Heatpipes with Aluminum Base and Aluminum Fin Stack



Fan Dimension

103 x 103 x 30 mm



Speed

At Duty Cycle 20%: 800± 200 RPM
At Duty Cycle 50%: 1300±10% RPM
At Duty Cycle 100%: 1800±10% RPM



Bearing

Double Ball



Rated Voltage

12V



Power

At Duty Cycle 20%:0.3 W
At Duty Cycle 50%: 0.48 W
At Duty Cycle 100%: 0.96 W



Air Flow

At Duty Cycle 20%: 14.88 CFM
At Duty Cycle 50%: 25.26 CFM
At Duty Cycle 100%: 35.03 CFM



Noise Level

At Duty Cycle 0~20%: 10.8 dBA
At Duty Cycle 50%: 15.2 dBA
At Duty Cycle 100%: 21.3 dBA



Air Pressure

At Duty Cycle 20%: 0.44 mm-H2O
At Duty Cycle 50%: 1.16 mm-H2O
At Duty Cycle 100%: 2.06 mm-H2O



Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)





*All product specifications and product images are subject to change without notice.
