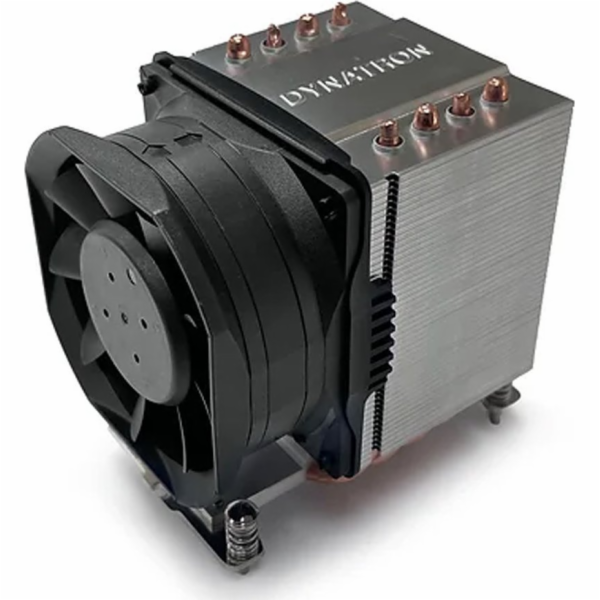

Dynatron A56 - Active Cooler for 3U Server & up for AMD® Socket AM4/AM5

CPU Support


AMD® Ryzen Processor




CPU Socket


AM4/AM5




Screw Type


#6-32




Installation Torque


6-10 in-lb




Solution


3U Server and up




Dimensions


107.5 x 78 x 110mm




Weight


600g




Material


Aluminum Stacked Fin with Heat Pipes directly contact CPU




Fan Dimension


80 x 80 x 38 mm




Speed


At Duty Cycle 0~20%: 2400 ± 10% RPM
At Duty Cycle 50%: 4800 ± 10% RPM
At Duty Cycle 100%: 8000 RPM Min




Bearing


Double Ball




Rated Voltage


12V




Power


At Duty Cycle 0~20%: 1.2 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 W




Air Flow


At Duty Cycle 0~20%: 35.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFM




Noise Level


At Duty Cycle 0~20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.40 dBA




Life – Continuous operating

under normal temperature

(40 °C or 104 °F)


70,000 Hours
