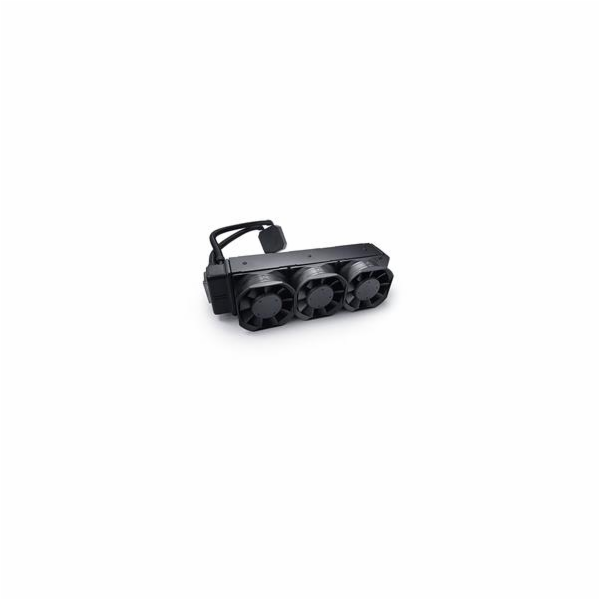

Dynatron L35 - 2U Liquid Cooler Intel /AMD ( LGA 115x 305W / AMD AM2/3/4 FM1/2 210W )

L35












































_______________________________



CPU SUPPORT
Intel | AMD

CPU SOCKET

Intel Socket |
LGA1851/1700, LGA1200/115X
LGA2011/2066/SQUARE
LGA1356/1366

AMD Socket |
AM4/AM5
FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1

APPLICATION
2U



MAXIMUM POWER
Intel – 305 W
AMD – 210 W

_______________________________








CPU Support


Intel & AMD




CPU Socket


LGA115x, LGA1366, LGA1700, LGA2011/2066 Square ILM

AM2/AM3/AM4/AM5/FM1/FM2




Screw Type


#6-32/M3/M4




Installation Torque


6-10 in-lb/5-7 in-lb/10-16 in-lb




Solution


2U Server and Up




Fan Dimension


80 x 80 x 38 mm




Cold Plate Dimension


64.5 x 64.5 x 23 mm




Radiator Dimension


304.9 x 82 x 85.1 mm




Speed


At Duty Cycle 0~20%: 2400± 200 RPM
At Duty Cycle 50%: 4800± 10% RPM
At Duty Cycle 100%: 8000±10% RPM




Bearing


2 Ball Bearing




Rated Voltage


12V




Fan Power Consumption


At Duty Cycle 0~ 20%: 1.20 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 W




Noise Level


At Duty Cycle 0~ 20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.40 dBA




Air Flow


At Duty Cycle 0~ 20%: 35.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFM




Air Pressure


At Duty Cycle 0~ 20%: 1.39 mm-H2O
At Duty Cycle 50%: 5.97 mm-H2O
At Duty Cycle 100%: 34.06 mm-H2O




Lead Wire Pin Out


Pin1- (-)
Pin2- (+)
Pin3- (Tachometer/Signal output)
Pin4- (PWM)




Pump Power Consumption


7.2W




Life – Continuous operating

under normal temperature

(40 °C or 104 °F)


70,000 Hours
