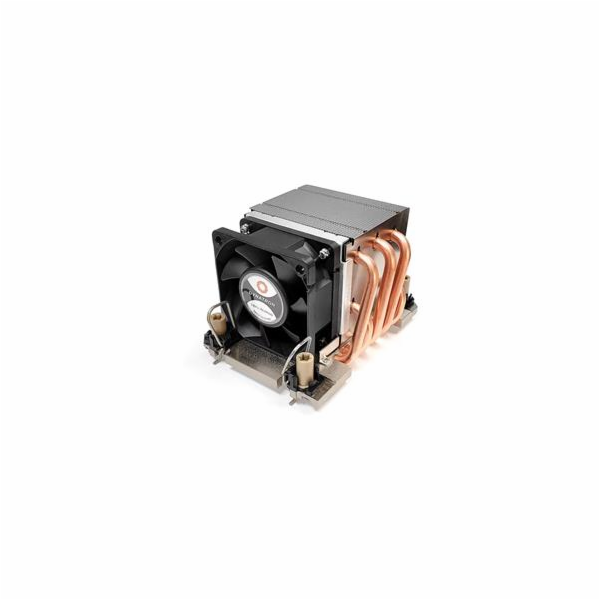

Dynatron N11 - 2U Active Cooler for Intel 4189, up to 270W

Additional Information





CPU Support

Intel



CPU Socket

FCLGA 4189-4/5(Socket P4/P5 or P+)



Solution

2U Server and Up



Dimensions

113.0 x 82.0 x 66.0 mm



Weight

460 g



Material

Aluminum Fin stack with Heat Pipe embedded



Fan Dimension

60 x 60 x 25 mm



Speed

Up to 8500 RPM



Rated Voltage

12V



Bearing

2 Ball Bearing



Power

At Duty Cycle 20%: 0.90 W
At Duty Cycle 50%: 2.04 W
At Duty Cycle 100%: 5.40 W



Air Flow

At Duty Cycle 20%: 8.12 CFM
At Duty Cycle 50%: 20.31 CFM
At Duty Cycle 100%: 40.60 CFM



Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 35 dBA
At Duty Cycle 100%: 50 dBA


Air Pressure

At Duty Cycle 20%: 0.58mm-H2O
At Duty Cycle 50%: 3.65 mm-H2O
At Duty Cycle 100%: 14.58 mm-H2O



Lead Wire Pin Out

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)



Thermal Grease

Shin-Etsu 7762 Pre-printed





*All product specifications and product images are subject to change without notice.
