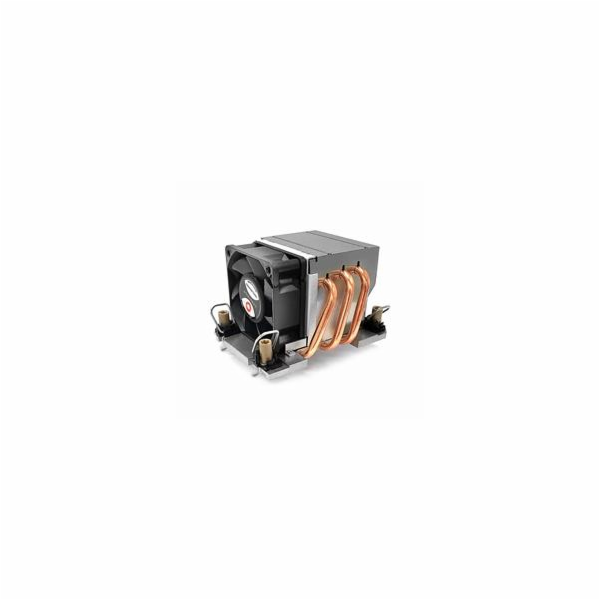

Dynatron N5 - 2U Active Cooler for Intel 4189, up to 205W

Additional Information





CPU Support

Intel



CPU Socket

FCLGA 4189-4/5(Socket P4/P5 or P+)



Solution

2U Server and Up



Dimensions

113.0 x 82.0 x 66.0 mm



Weight

440 g



Material

Aluminum Fin stack with Heat Pipe embedded



Fan Dimension

60 x 60 x 25 mm



Speed

At Duty Cycle 0~20%: 1700 ± 200 RPM
At Duty Cycle 50%: 4000 ± 15% RPM
At Duty Cycle 100%: 8000 -0 / +500 RPM



Rated Voltage

12V



Bearing

2 Ball Bearing



Power

At Duty Cycle 0~20%: 1.20 W
At Duty Cycle 50%: 2.520 W
At Duty Cycle 100%: 9.60 W



Air Flow

At Duty Cycle 0~20%: 9.86 CFM
At Duty Cycle 50%: 23.21 CFM
At Duty Cycle 100%: 49.32 CFM



Noise Level

At Duty Cycle 0~20%: 19.32 dBA
At Duty Cycle 50%: 37.89 dBA
At Duty Cycle 100%: 54.26 dBA



Air Pressure

At Duty Cycle 0~20%: 0.860 mm-H2O
At Duty Cycle 50%: 4.760 mm-H2O
At Duty Cycle 100%: 21.50 mm-H2O



Lead Wire Pin Out

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)



Thermal Grease

Shin-Etsu 7762 Pre-printed





*All product specifications and product images are subject to change without notice.
