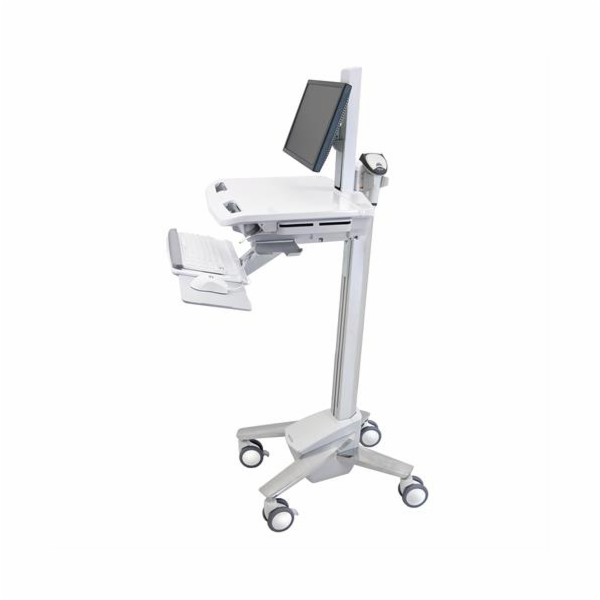

ERGOTRON StyleView® Cart with LCD Pivot, SV40Light-Duty Medical Cart, pojízdný stojan, monitor, klávesnice, myš,skan.
This lightweight, truly ergonomic healthcare cart moves easily throughout the healthcare facility for convenient documentation. It features sit-to-stand height adjustment and an adjustable keyboard tray.
Part Number: SV40-6300-0
Description: StyleView LCD Cart, non-powered SV40, pivot (white, grey and polished aluminum)
Includes LCD pivot, worksurface, secure CPU compartment, scanner holder bracket, mouse holder, wrist rest, negative-tilt keyboard tray, left/right mouse tray, cable storage, four casters (two locking, all without bearings)
* Total maximum load on height-adjustment assembly = 35 lbs (15.9 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface ? 5 lbs (2.3 kg); keyboard tray ? 3 lbs (1.4 kg); CPU compartment ? 13 lbs (5.9 kg)
Note: If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)
Note: The addition of drawer accessories to SV40 carts is not recommended
† LCD and worksurface adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)
‡ Portrait screen orientation may be incompatible with widescreen displays > 19"
True Ergonomics
Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Designed for users 5 0" to 6 1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
Patented CF™ lift-and-pivot motion technology minimizes forces required to adjust cart position
Actual cart weight is just 59.7 lbs (27.1 kg), making system relocation easy
Safe
Environmentally clean: RoHS, REACH and EU (94/62/EC) packaging compliant
Tested to UL/EN/IEC specifications for enhanced patient safety
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
Large, smooth worksurface; easy-to-clean design promotes infection control
Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
Designed to meet guidelines established by the American National Standards Institute for computer use
All the Details Covered
Universal mounting slot for accessories and equipment
Ships fully assembled and is easily accessible from container
Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access
Four dual-wheel casters; two locking casters ensure lock-in-place stability
Compatibility and Dimensions
Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Product Weight: 59.7 lbs (27.1 kg)
Shipping Dimensions: 53.4"D x 24.4"W x 31.5"H (133 x 62 x 80 cm)
Shipping Weight: 80 lbs (36.2 kg)
