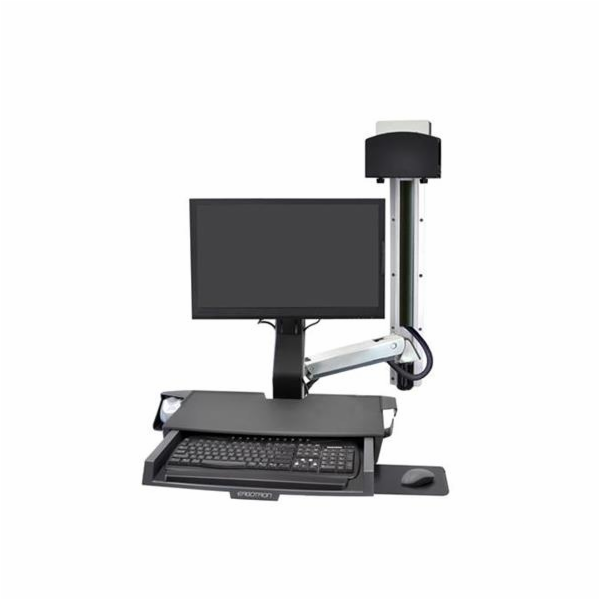

ERGOTRON StyleView® Combo System with Worksurface, Small CPU Holder (aluminum), držák na zeď, monitor/pc/myš/klávesnice
Let caregivers in your healthcare organization work sitting or standing with everything they need at their fingertips. This sit-stand combo system holds a monitor, barcode scanner, CPU, wrist rest and mouse, plus a sturdy worksurface and pull-out keyboard tray, all on the same height-adjustable arm for an ergonomic fit that supports the best workflows (and comfort).
Part Numbers (CPU size, color):
45-272-026 (small cpu, polished aluminum)
45-272-216 (small cpu, white)
45-270-026 (medium cpu, polished aluminum)
45-270-216 (medium cpu, white)
Description: StyleView Sit-Stand Combo System with Worksurface and CPU Holder
Includes Combo Arm, 34" Wall Track with (2) track covers, CPU holder, (2) 10" cable channels, CPU and arm track mount bracket kits, Wall Track fasteners for concrete and wood, CPU direct wall mount kit, height-adjustable LCD mount, wrist rest, scanner and mouse holders, integrated keyboard tray, slide-out mouse tray, handle, VESA monitor mounting kit, cable ties
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
* Weight Capacity: display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18 kg)
† Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
Monitor up/down tilt = +25°/-5°
Patented CF™ lift-and-pivot motion technology
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Integrated mouse and barcode scanner holder provide easy access
Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (34 mm)
CPU Size Range:
Small CPU Holder: 1-3/8" to 3-3/4" (3.5 to 9.5 cm) wide
Medium CPU Holder: 3-3/8" to 8" (8.5 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included spacer within the holder
To increase extension range, also order SV Extender (see Accessories)
Can be configured to hold a laptop instead of an LCD display; also order Notebook Tray (see Accessories)
Product Weight: 41 lbs (19 kg)
Shipping Dimensions: 37.1" x 26.1" x 10" (942 x 662 x 254 mm)
Shipping Weight: 51.2 lbs (23 kg)
