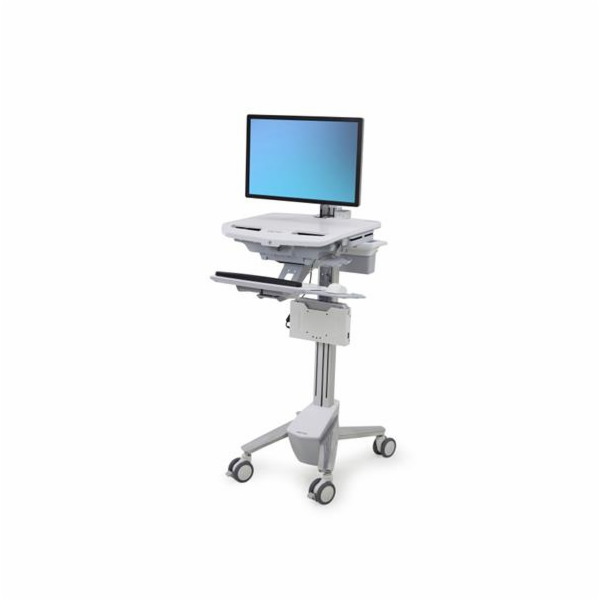

ERGOTRON SV DC Power System - LCD + CPU vozík

ERGOTRON SV DC Power System - LCD + CPU vozík

From Amstron® Power Solutions, the SV DC Power System is a low-cost way to add power capability to an Ergotron non-powered cart.

The medical-grade battery provides maximum power between charges, with run-times of 10–15 hours depending on the application. Order the system appropriate to your hardware needs.

NOTE: This configuration can be built by combining separately ordered products. Select a component to get its part number.

SV DC Power System, LCD+CPU 97-942

Includes Amstron MedXP-300 DC power unit with charging brick, North American power cord, fuel gauge with USB extender cable, battery holster, interchangeable M-tips, output 12V/19V Y-cable adapter, output Y-cable without adapter
300Wh DC onboard power
Maximum output power 130W; maximum during charging and use is 120W
Charge time: 6 hours
Runtime up to 15 hours depending on load
Selectable output voltage – 12V, 16V, 19V, 24V and 5V (USB) for fuel gauge or charging devices like phones
Fuel gauge with three-digit display on the unit or on User Interface accessory (97-953)
Power adapter 19V, 160W AC
M-Tips included for the 13 most popular devices (see cross-reference list below)
UL & IEC 60601-1 certified as a component
Installation of system on front of a StyleView Cart will limit cart’s lift engine travel to 16" (40.6 cm)
Product Dimensions: 10.6" x 7.1" x 1.6" (27 x 18 x 4 cm)
Product Weight: 6 lbs (2.7 kg)
Shipping Dimensions: 18" x 10.75" x 10.25" (45.7 x 27.3 x 26 cm)
Shipping Weight: 13.5 lbs (6.1 kg)
Warranty: One (1) year
