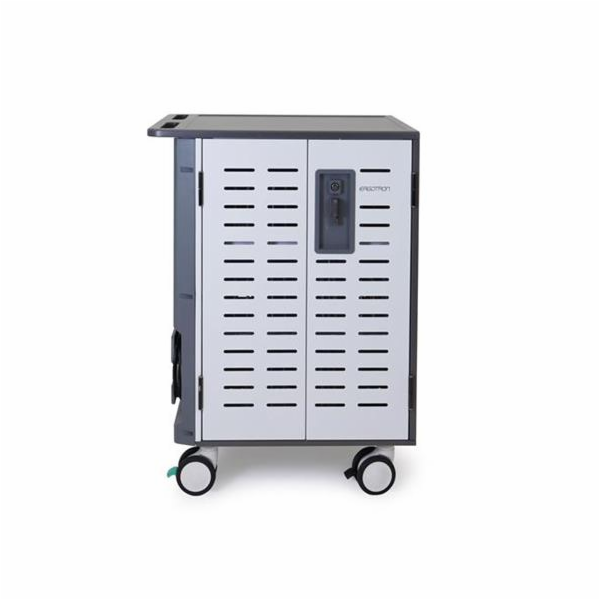

ERGOTRON Zip40 Charging Cart, EU, nabíjecí pojízdná skříň pro 40 zařízení, uzamykatelná
Transport, secure and charge up to 40 devices in one place with the Zip40 Charging Cart. The adjustable dividers in this easy-to-move cart fit tablets, Chromebooks™, Ultrabooks™, MacBooks® and laptops, keeping your devices ready for any lesson plan. PowerShuttle® Technology quickly charges devices while preventing electrical circuit overload. With no assembly required, this charging cart moves to the head of the class.
Part Number:
North America = DM40-2009-1
Europe = DM40-2009-2
United Kindom/Ireland = DM40-2009-3
Hong Kong/Malaysia/Singapore = DM40-2009-3
Australia/New Zealand = DM40-2009-4
China = DM40-2009-5
Japan = DM40-2009-6
Description: Zip40 Charging Cart (grey/white)
Includes 40 dividers, 9 small device divider stoppers, 9.8 (3 m) country-specific power cord, 4 country-specific 10-outlet power strips, two 20-unit brick storage trays, four 5" dual-wheel locking casters, external auxiliary outlet (2 receptacles in US, JP or 1 receptacle in EU, UK, AU, CN), 2 mounting brackets for Ethernet switch, 2 internal auxiliary outlets for Ethernet switch and WAP installation, power on/off switch, 4 keys
Ships fully assembled
Total Capacity: Up to 40 devices with 1.1"-wide (28 mm) slot; up to 30 devices with 1.9"-wide (48 mm) slot
† Maximum device dimensions: 17.1"W x 11.2"H (43.4 x 28.4 cm) including case and cord
Divider bumpers shorten the slot size to provide easy plug-in access for smaller tablet devices
Maximum adapter dimensions: Brick-style AC adapter = 7"H x 3"W x 2.2"D (17.8 x 7.6 x 5.6 cm). Wall-plug-style AC adapter = 2.2"W x 4.7"L x 3.9"D (5.5 x 12 x 10 cm) including cable strain relief. Cable diameter = 2.6–4.6 mm
‡ Weight capacity: Total = 255 lbs (116 kg); 76.5 lbs (34.7 kg) per shelf (3 shelves total in cart); 25 lbs (11.3 kg) top worksurface. Per device maximum weight of 7.6 lbs (3.4 kg) assumes 10 devices per shelf in a cart configured to hold 30 devices in total
Country-specific 10-receptacle outlet strip is designed to work with oversized wall-style and brick-style AC adapters
Uses the AC adapters that come with each device. AC adapters are not included
Cooling/Ventilation: Four 12V DC continuous operation fans and ventilated doors keep equipment cool
External Auxiliary Outlet(s) give you an always-on outlet to plug in extra peripherals like printers or document cameras. No need to choose between using the auxiliary outlets and charging devices—do both at the same time!
Location included for installation of a Wireless Access Point (WAP not included). Maximum dimensions of the WAP = 10"W x 10"D x 2.2"H (25.4 x 25.4 x 5.6 cm)
Location included for installation of a standard 1U rack mountable Ethernet Switch (switch not included). Maximum dimensions of the switch = 17.5"W x 12.4"D x 1.8"H (44 x 26 x 4.4 cm). Maximum weight of the switch = 12 lbs (5.4 kg)
Country-specific power cord =12.5 (3.8 m) long; stored on a recessed cord wrap
Environmentally clean: RoHS, REACH, WEEE and EU (94/620EC) packaging compliant
Power System: input/output = 100-240V~, 12-10A, 50/60 Hz
Temperature Range: operating 0° to 30°C (32° to 86°F); storage -40°C to -60°C (-40° to 140°F)
Relative Humidity (maximum): operating 10 to 90% (non-condensing); storage 5% to 95% (non-condensing)
Altitude (maximum): 2000 m (6,562 )
Certification
UL 60950 Safety of Information Technology Equipment, CAN/CSA C22 2 No. 60950; UL 1678 Household, Commercial, and Institutional-Use Carts, Stands, and Entertainment Centers for Use with Audio and/or Video Equipment
ICES-003 Issue 4, Class A
FCC Part 15 Class
RoHS and Reach compliant material used
Product Dimensions: 30."W x 26.1"D x 45.4"H (77 x 66 x 115 cm)
Product Weight: 175 lbs (79 kg)
Shipping Dimensions: 37"W x 30"D x 52"H (94 x 75 x 132 cm)
Shipping Weight: 221 lbs (100 kg)
