Ermenrich Ping SM110 Cable Tester

USB: ano
Bluetooth: ne
Včetně baterií: ano
Typ baterie / aku: Lithium-Ionen
Napětí baterie (V): 3,7
Způsob provozu: Aku baterie
Materiál: Plast
Osvětlení pozadí: ano
Displej: LCD
Paměť měřených hodnot: 5
vypínací automatika: ano
Rozsah měření: 10 - 2000 m
Typ: Zkoušečka kabelů

Ermenrich Ping SM110 cable tester
The Ermenrich Ping SM110 is a multifunctional testing device for cable tracking, length measurement and testing of different cable types. It can also be used to check the condition of telephone lines and determine polarity. Optionally, a PoE test can be performed and the device has a flash port function to identify the port on the switch or router. The VFL function helps you detect if a cable is damaged or locate a cable in a cable bundle by flashing a red light on the connector.

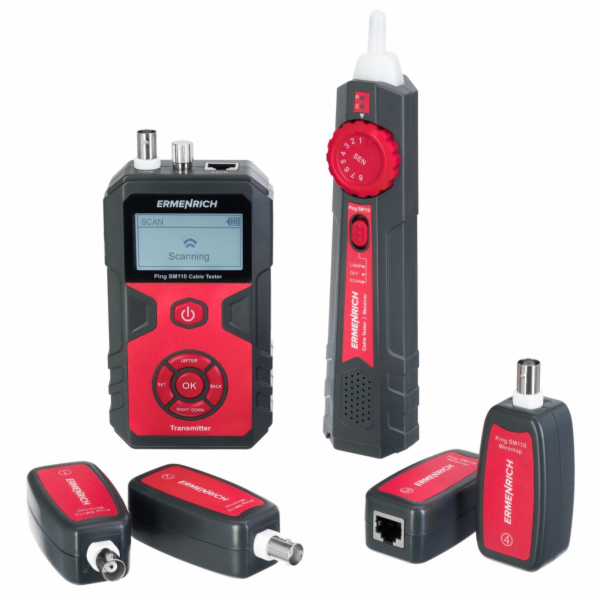

The Ermenrich Ping SM110 cable tester consists of three main units: a transmitter with display and control buttons, a receiver with speaker and adjustable sensitivity and 4 remote units. Adapters and patch cables are also included. All accessories are delivered in a convenient carry bag that can safely store all devices.
Transmitter and receiver are equipped with batteries, adapters and charging cables.
Features:
Cable assignment and tracking of coaxial and network cables Checking the condition and polarity of telephone lines Measurement of cable lengths up to 2,000 meters PoE test, port flash and VFL functions Powered by rechargeable battery (transmitter and receiver)

Technical data:
Transmitter connections: microUSB, RJ45 (main), RJ45 (scan), BNC, PoE, Flash, VFL Supported cable types: telephone cable, coaxial cable, STP/UTP (CAT5, CAT6), network cable Maximum length of cable tested: 2000 m Cable tracking Detection of voltage polarity Measuring range: 10 - 2000 m Visual Troubleshooting (VFL) Signal frequency: 130 kHz Data transfer: + (5 memory locations) Display: LCD Display resolution: 128 ? 64 pixels Display backlight Power source: 1400 mAh, 3.7 V lithium polymer battery Display at low battery level Automatic shutdown: 15  / 60 min / 30 min Temperature range:  10...+ 60 degrees
