Popis produktu

Typ baterie / aku: Lithium-Polymer
Potřebný počet baterií: 2
Včetně baterií: ano
Typ: Lokalizátor
Barva: modrá / černá
Hmotnost (g): 455

Ermenrich Ping SM80 locator for underground wires

The Ermenrich Ping SM80 Ground Cable Locator is designed to locate single- and dual-core parallel low-voltage or zero-conductor cables buried deep in the ground or in walls. It can be used for surveying and site surveys before starting construction work, such as drilling walls, digging foundations, etc. The Ermenrich Ping SM80 can also be used to locate circuit breakers and hidden sockets.

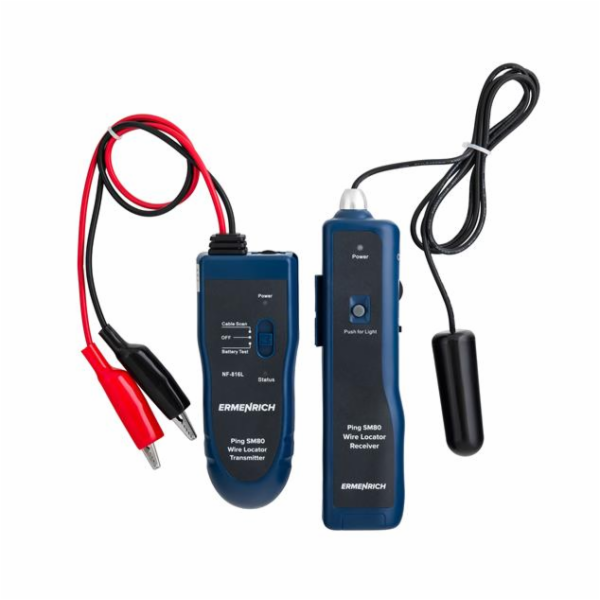

The device consists of transmitter and receiver, the location depth is 0.6 meters and the length of the detected cable can be up to 800 meters. When a cable is located, the Ermenrich Ping SM80 emits an acoustic signal. If you are working in a noisy environment where the signal is difficult to hear, you can connect earphones (included) to the receiver.

The device is easy to operate and maintain, only the batteries of the receiver and transmitter need to be charged occasionally.

Features:


For zero or low voltage cables only
Detection of single-core cables and two-core cables with parallel connection
Maximum cable depth: 0.6 meters, maximum length: 800 meters
Measurement of cable depth, determination of the location of circuit breakers, finding safe places for drilling and installing sockets
Battery powered, option to connect earphones


Technical data:

Sender:


Maximum detection depth: 0.6 m
Maximum possible voltage of the circuit to be tested: 24 V
Signal frequency: 200 kHz
Maximum signal transmission distance: 800 m
Output signal voltage peak: 15 V
Voltage control
Signal transmission format: double tone
Power supply: Charging via a 5 V, 1 A DC adapter (not included) and micro USB cable (included), 1500 mAh, 3.7 V lithium polymer battery
Display at low battery level
Battery life: about 4 hours
Temperature range: -10...+60 °C
Note: Must not be used on high voltage networks and for detecting multi-core cables


Receiver / remote unit:


Connections: Earphones
Signal frequency: 200 kHz
Power supply: Astroplanetarium: Li-ion battery 18650, 1500mA h, micro-USB 5V, 1A (an additional power supply or smartphone charger is required), charging via a 5V, 1A DC adapter (not included) and micro-USB cable (included)
Display at low battery level
Battery life: about 7 hours
Temperature range: -10...+60°C


---
