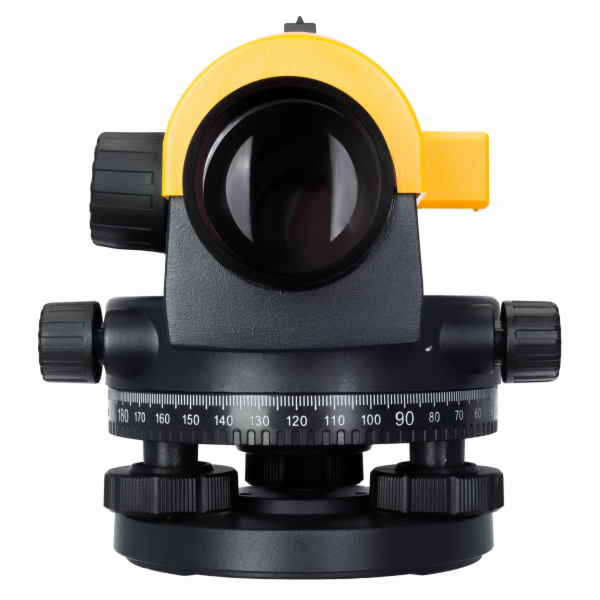

Ermenrich PL30 Optical Level

Typ ochrany: IP54
Typ: Měřicí přístroj
Barva: fialová / černá

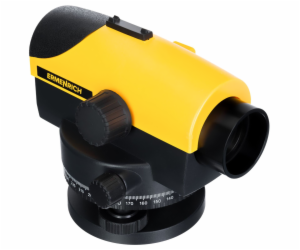

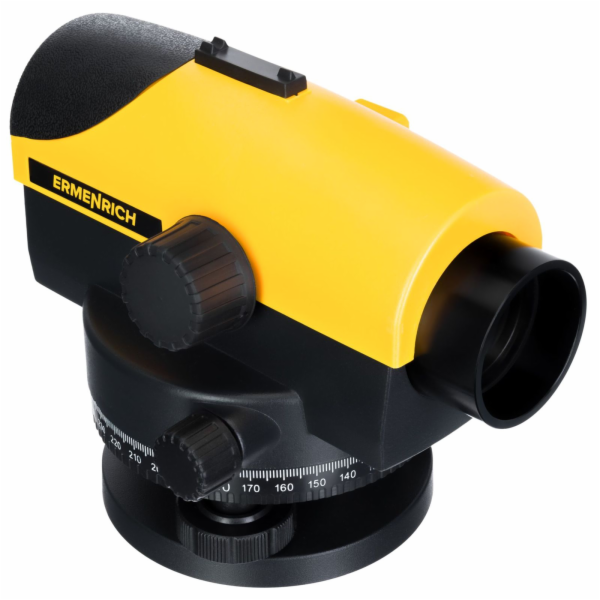

Ermenrich PL30 optical leveller

The Ermenrich PL30 leveller is an optical instrument that allows you to measure the vertical height (difference in height) between two points distant from each other, angles in the horizontal plane and the distance to an object. The 32x magnification allows you to see the millimeter scale of a leveling bar at a distance of up to about 50 meters. The metric E" divisions are visible over the entire working distance - up to 120 meters. The optical leveler is equipped with a compensator, which automatically aligns the finish line, making the work easier and more convenient. The compensator is robust and the measurement accuracy high.

The optical leveller is ideal for construction, landscaping and surveying. It can be used both for professional purposes (construction of large buildings and facilities, laying foundations) and to solve everyday tasks in the household (leveling the floor, building a fence, setting up a greenhouse). The unit is robust and splash-proof, and the set includes alignment tools.

Note: To measure with the optical leveler, you need a leveling bar and a tripod (not included).

Features:


Optical, with compensator
Upright image of the target
Magnification: 32-fold
Lens diameter: 36 mm
Water resistant
M16 or 5/8-inch tripod thread
Colour: purple / black


Technical data:


Level type: optical
Compensator type: air damping
Image of the target: upright
Near focus: 0.3 m
Field of view: 1°30
Height accuracy for single measurement: 1.6 mm / 30 m
Standard deviation per 1 km (double levelling): 1 mm
Working range of the compensator:  0.3 angular seconds
Compensation locking
Stadia ratio: 100
Horizontal circle: 1° or 1 gon
Sensitivity of the bubble: 8 /2 mm
Housing: Robust plastic
Water resistance: IP54 (splash-proof)
