Laserový měřič Ermenrich Reel GM100

Způsob provozu: Baterie
Typ baterie / aku: AAA (Micro)
Potřebný počet: 2
Včetně baterií: ne
vypínací automatika: ano
Displej: ano
Laserová dioda (nm): 620 - 690
Dosah (m): 0,05 - 100
Funkce paměti: ano
Počet uložených hodnot: 100
Typ: Laserový dálkoměr
Barva: červená / černá
Rozměry: 117 x 53 x 27
Hmotnost (g): 94

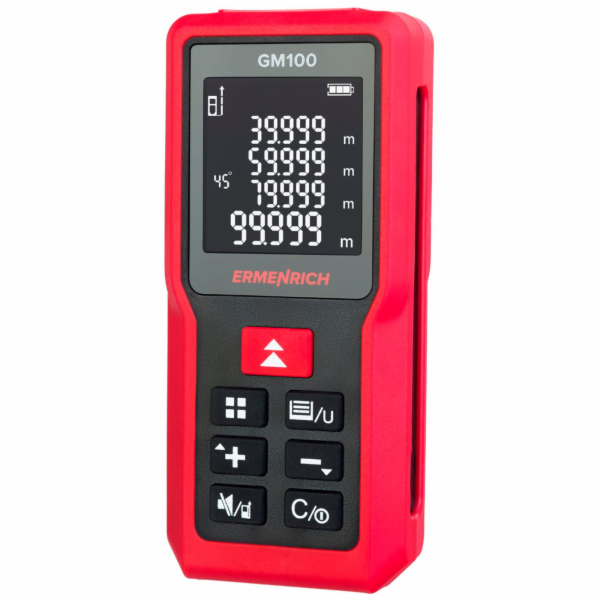

Ermenrich Reel GM100 laser measuring device

The Ermenrich Reel GM100 is a laser measuring device that was developed for measurements on construction sites for new buildings or renovations. It can also be used for property line surveying, surveying work, and other applications that require precise measurement of an object's linear dimensions, area, and volume. The maximum measuring distance is 100 meters. The laser measuring device can also be used as a laser protractor. Thanks to the Pythagorean theorem function, it automatically calculates distances after taking intermediate measurements. This feature is especially useful when you cannot position the laser to draw the beam directly from point to point.

The Ermenrich Reel GM100 laser measuring device has a large LCD display. The compact plastic housing and easy access to the control buttons make it easy to use the instrument in demanding work environments. It is powered by 2 AAA batteries and has an auto power off feature that will automatically turn off either the laser or the laser gauge to conserve battery power. A set of batteries lasts for more than 5,000 measurements on average. Depending on the mode selected, the instrument takes a single distance measurement or a continuous measurement of the room. You can turn off the audible warnings if you want to work in peace.

Characteristics:


Various measurements: distance, angle, area and volume
Single distance measurement or continuous measurement (scan mode) with 100 groups of results
Automatic distance calculation after intermediate measurements (function Pythagoras theorem)
Easily accessible control buttons, 4-line LCD display
5000 or more measurements with one set of batteries


Technical specifications:


Type: Laser Gauge
Measure single distance mode
scan mode
Measuring range: 0.05-100m
Units of measurement: minutes (angular), seconds (angular)
Measurement accuracy: ±2%
Angle measurement range: ±50 degrees
Units of measurement: m2, sq.ft.
Area Units m3, cu.ft.
Measure volume (units m, in, ft)
Function Pythagoras theorem
addition and subtraction
reference point
Silent mode
Laser Target Marker: 620-690nm, <1mW, Class 2
Laser beam / device automatic switch-off: 30 / 180 seconds
Number of lines of the display: 4
Historical data: 100 groups
Power supply: 2 AAA batteries (not included)
Battery life: > 5,000 measurements
Temperature range, °C: 0 to +40
Dimensions: 117 x 53 x 27mm
Weight: 94g
