FANTEC NVMe-X2U32-20G 2x 20Gbit/s

RAID: ne
Lüfter: ano
M.2 (NVMe / PCIe): ano
SATA: ne
SAS: ne
Typ: Obal na pevný disk
Kompatibilita s SSD: M.2
Max. počet paměť. medií: 2
USB-C: 1x USB-C 3.2 Gen 2 (20 GBit/s)
eSATA: ne
Síť (RJ 45): ne
WiFi: ne
Barva: černá
Šířka (mm): 120
Výška (mm): 40
Hloubka (mm): 75
Hmotnost (kg): 0,59

FANTEC NVMe-X2U32-20G 2x 20 Gbit/s

The NVMe-X2U32-20G is a fast USB enclosure for 2x NVMe PCIe SSDs. It uses a 20G USB 3.2 Gen2x2 interface and is typically backwards compatible to other USB versions. The case requires its own power supply, the power adapter is included in the scope of delivery, so it is not a typical mobile USB device. Designed as a very fast external USB data drive or as a very fast clone station, two PCIe NVMe SSDs can be used simultaneously. No computer is required for cloning; the computer must have a suitable USB 3.2 Gen2x2 (20G) port. Modern NVMe PCIe SSDs are very fast and generate a lot of working heat, so the case is made of aluminum. It is equipped with a large aluminum heatsink, which dissipates the working heat of the NVMes via integrated thermal pads over the housing surface. In addition, the working heat of the NVMe SSDs is removed from the inside of the case by an automatically controlled internal fan. The NVMe SSDs are mounted in the case with screws and the heat sink is simply plugged in. Whether for fast data access or cloning of PCIe NVMe SSDs, the FANTEC NVMe-X2U32-20G offers a quick solution.

Features:


Prepared for two PCIe NVMe M.2 SSDs
High-quality aluminum housing, with internal fan and large heat sink, optimally dissipates the working heat of NVMe SSDs
Supports USB3.2 Gen2x2 (20G), connection to PC with USB-C cable (20G)
USB3.2 Gen2x2 (20 Gbit/s), backward compatible
Supports PCIe Gen3x2 NVMe up to 16Gb/s
Form factor 2242, 2260,2280, M-Key or B+M-Key
Not suitable for SATA M.2 SSD
Supports 1:1 clone function, respectively: from NVMe SSD to NVMe SSD
Clone function does not require a computer

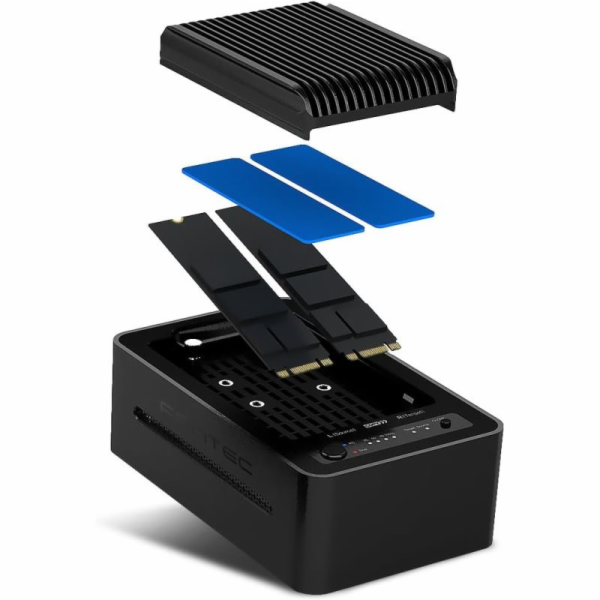

Large, high-quality aluminium heatsink with integrated, pre-assembled thermal pads
Aluminium heatsink is mounted without tools on the NVMe SSDs and clamped, not screwed
Internal, temperature controlled, 50x50x10.5mm fan transports the working heat from inside the housing
Switch to turn on/off the housing and start the clone function
LEDs to display the operating status, data access and state of the clone operation
NVMe SSD is fixed with a small screw
PCIe NVMe SSDs get very warm under load, please make sure the case is free to dissipate heat
Dimensions: 120 x 75 x 40 mm
Weight: 0.59 kg
