FANTEC BP-SA3151-12G/6G Backplane für 5x 3,5 HDD

RAID: ano
Lüfter: ano
M.2 (NVMe / PCIe): ne
SATA: ano
SAS: ano
Typ: Výměnný rámeček pro pevný disk
Kompatibilní s HDD: 3,5"
Max. počet paměť. medií: 5
Vhodná velikost hřídele pro rám: 3x 5,25"
Systém paměti: ne
DisplayPort: ne
eSATA: ne
Síť (RJ 45): ne
Barva: černá
Obal: hliník / umělá hmota
Šířka (mm): 146
Výška (mm): 125
Hloubka (mm): 198
Hmotnost (kg): 1,19

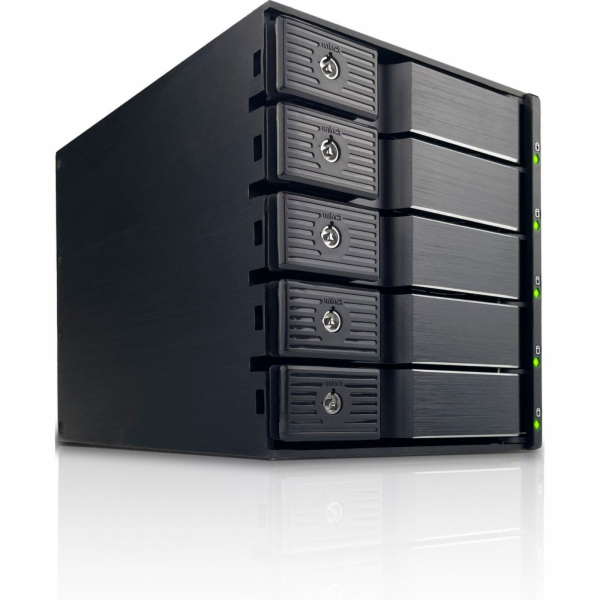

FANTEC BP-SA3151-12G/6G Backplane for 5x 3.5" HDD

SAS (12G) + SATA (6G) backplane for 5x 3.5" HDD in a 3x 5.25" tray. With a 80mm fan at the back side.

Features:


Fast, trayless installation and exchange of the hard disks without screws.
Suitable for RAID
Plug & Play
Hotswap
Lockable
Suitable for 3.5" HDD SAS I,II, III 12G
Suitable for 3.5" HDD SATA I,II,III 6G
1x 80x80 mm fan at the back side; adjustable in two speeds
Housing aluminum, front doors aluminum/plastic
Case and front doors black
LEDs for hard drive status display:

1x LED power
5x LEDs hard drive access: blue - on, purple flashing - access
LED for data access (purple flashing) deactivatable


Interfaces:

5x SAS/SATA 22-pin interface internal
5x SAS/SATA 7-pin interface external
2x SATA 15-pin power supply external


Data interfaces: SAS 12G+ SATA 6G
Form factor: 3x 5.25" Module
Dimensions (W x D x H): 146 mm x 198 mm x 125 mm
Weight: 1,19 kg
