FANTEC BP-SA35-12G/6G Wechselrahmen

RAID: ne
IDE: ne
SATA: ano
SAS: ano
SCSI: ne
Typ: Výměnný rámeček pro pevný disk
Kompatibilní s HDD: 3,5"
Max. počet paměť. medií: 1
Vhodná velikost hřídele pro rám: 1x 5,25"
Systém paměti: ne
DisplayPort: ne
eSATA: ne
Síť (RJ 45): ne
Barva: černá
Obal: hliník / umělá hmota
Šířka (mm): 146
Výška (mm): 42
Hloubka (mm): 180
Hmotnost (kg): 0,29

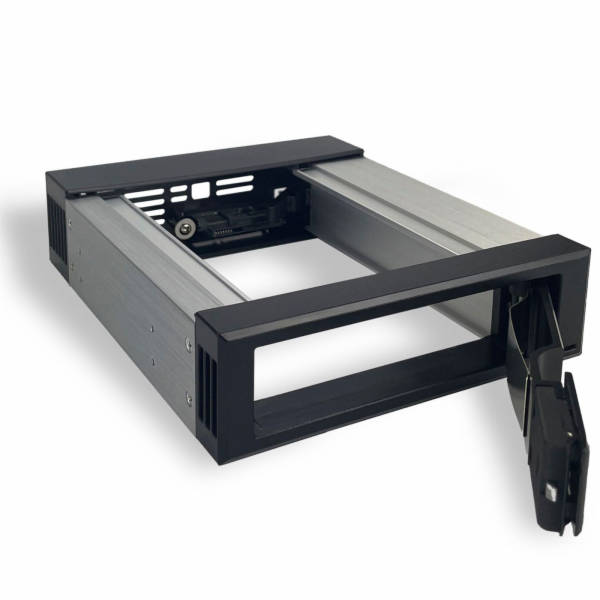

Fantec BP-SA35-12G/6G mobile rack

SAS (12G) + SATA (6G) mobile rack for 1x 3.5 " HDD in a 5.25 "module.

Features:


Fast, trayless installation and exchange of the hard disks without screws
Plug and play
Hotswap
Lockable
Suitable for 3.5" HDD SAS I, II, III 12G
Suitable for 3.5" HDD SATA I, II, III 6G
Housing aluminum, front doors made of aluminum/plastic
Front panel black
Prepared for the installation of a 40mm fan (not included in the scope of delivery)
Hard drive status LEDs:

1x LEDs for hard disk access: blue - on; purple flashing - data access
LED for data acces (purple flashing) can be deactivated


Interfaces:

1x SAS / SATA 22-pin interface internal
1x SAS / SATA 7-pin interface external
1x SATA 15-pin external power supply


Data interfaces: SAS I, II, III 12G + SATA I, II, III 6G
Form factor: 1 x 5.25" slot
Dimensions (W x D x H): 146 mm x 180 mm x 42 mm
Weight: 290 g
