FANTEC MR-SA1242-12G für 4x2,5" SSD/HDD schwarz

RAID: ano
Lüfter: ano
Šířka (mm): 145,8
Barva: černá / stříbrná
Hmotnost (g): 660
Výška (mm): 159
Hloubka (mm): 41,6
Obal: hliník / umělá hmota
Kompatibilita s SSD: 2,5"
Vhodná velikost hřídele pro rám: 1x 5,25"
Typ: Výměnný rámeček pro pevný disk
Kompatibilní s HDD: 2,5"
Systém paměti: ne
Max. počet paměť. medií: 4
WiFi: ne
SATA: ano
SAS: ano

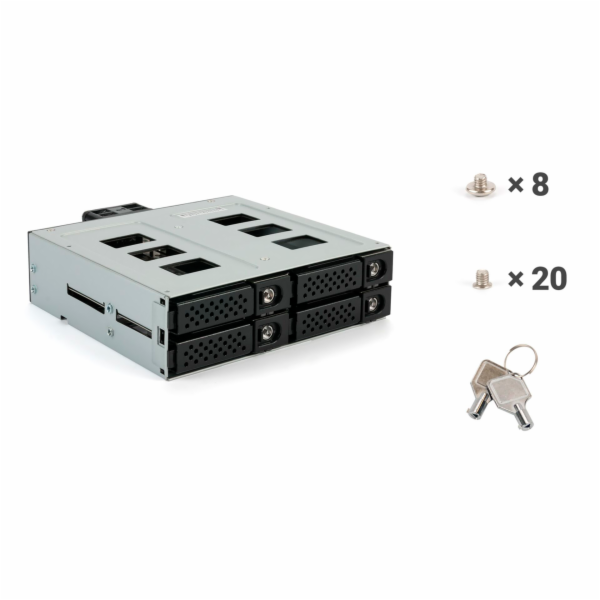

FANTEC MR-SA1242-12G – SAS / SATA Backplane for 4x 2.5" HDD / SSD
If you want to integrate several 2.5" drives in your system in a space-saving and well-organised way, this backplane provides a clear structure. It accommodates 4 HDDs or SSDs in a single 5.25" bay and supports both SAS and SATA. This makes it suitable for performance-oriented server and storage environments with mixed drive types.
Flexibility for professional storage solutions The backplane is designed for SAS 12G as well as SATA 6G and therefore supports common interfaces from SAS I–III and SATA I–III. Drives with a height of up to 15 mm can be installed, allowing the use of both HDDs and SSDs. An integrated 40 mm fan on the rear supports heat dissipation during continuous operation.
Robust construction and clear status indication The metal case provides stability during installation, while the black metal front allows clean integration into the system. Each drive tray is equipped with a metal lock. LEDs clearly indicate operating status and drive activity.
Features:
Supports 4x 2.5" HDD or SSD in a single 5.25" bay and saves installation space Compatible with SATA I, II and III as well as SAS I, II and III for versatile systems Suitable for SAS 12G and SAS 6G hard drives in professional environments Supports drives up to 15 mm height and allows flexible configuration Integrated 40 mm fan on the rear helps with cooling the drives Metal locks on the drive trays increase mechanical security LED indicators provide information on power and drive access Dimensions (W x D x H): 14.6 x 15.9 x 4.2 cm Weight: 0.66 kg
