FANTEC SRC-2012X07-12G/6G 2HE 550mm without Power Supply

Hmotnost (kg): 9,0
Šířka (mm): 430
Barva: černá / stříbrná
Hloubka (mm): 550
Obal: Hliník / kov
Výška (mm): 88
Lüfter: ano
M.2 (NVMe / PCIe): ne
SATA: ano
SAS: ano
USB-A: 1x USB-A 2.0
DisplayPort: ne
Kompatibilita s SSD: 3,5"
Typ: Obal na pevný disk
Max. počet paměť. medií: 19
Kompatibilní s HDD: 3,5"

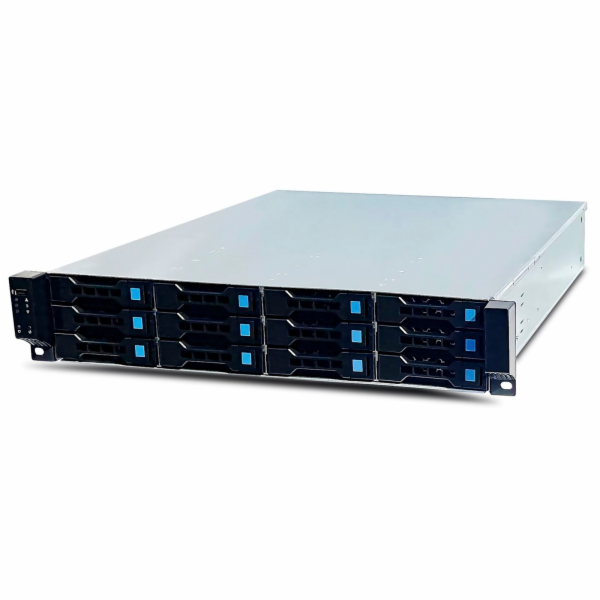

FANTEC SRC-2012X07-12G/6G 2U 550mm without power supply unit
19" storage enclosure for installation in 19" industrial cabinets. Robust construction and high quality workmanship. Pre-installed backplane for SAS or SATA hard disks. Expandable with telescopic rails.
Features:
ON/OFF switch, reset switch LEDs for ON/OFF, hard disk access, network access 1x USB 2.0 front USB port 2U IPC Storage Mainboard type: 12" x 10.5 Drive bays external: 12x 3.5" or 2.5"  Supports SAS 12 Gbit/s connections (backward compatible). Supports SATA 6 Gbit/s connectors (backward compatible). 3x SFF-8643: 4x SAS/SATA to 1x SFF-8643 each per backplane 6x 4-PIN Molex power connector: 2x 4-PIN Molex power connector each per backplane, (180° rotated) Supports hard disks with DC +12V, +5V and +3.3V 12x green power LED - lights up when hard disk is connected 12x blue status LED - blinks when hard disk is accessed Fan type: 3x 80 mm in the center panel 3.5" slots: 12 slots Number of PCI slots: 7x low profile PCI slots PCI slots Data interfaces: USB 2.0 host Case: steel / aluminum Color: Silver / black
