FANTEC SRC-2080X07 (without power suppl

SATA: ano
SAS: ano
Typ: Skříň serveru
Kompatibilní s HDD: 3,5"
Max. počet paměť. medií: 8
USB-A: 1x USB-A 2.0 / 1x USB-A 3.0
DisplayPort: ne
eSATA: ne
Síť (RJ 45): ne
WiFi: ne
Barva: černá / stříbrná
Obal: Ocel / hliník
Šířka (mm): 430
Výška (mm): 550
Hloubka (mm): 88
Hmotnost (kg): 7,7

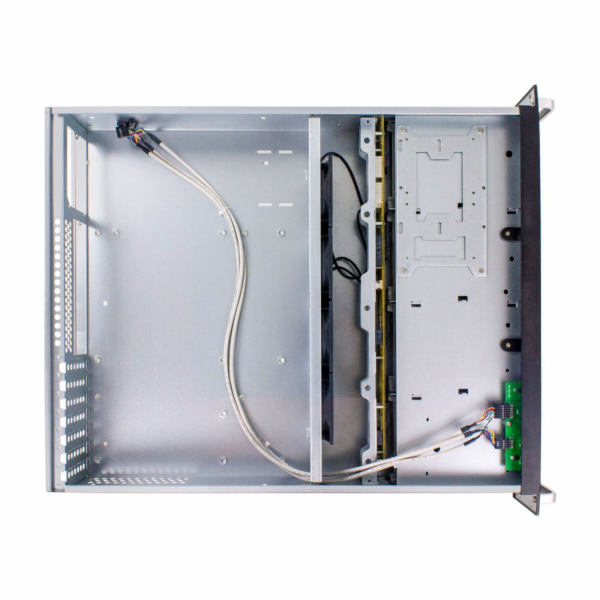

FANTEC SRC-2080X07 (without power supply)

19" Storage enclosure for installation in 19" industrial cabinets 12G/6G version: upgrade the 6G backplane to 12G variant with SFF8643. 6G continues to be supported Robust construction and high-quality workmanship. Pre-installed backplane to accommodate SAS or SATA hard drives.

Features:


Housing type: 19 inch storage enclosure
Mainboard types: M-ATX, ATX, SSI CEB
Drive slots: 8x 3.5" slots
Supports SAS 12Gbit/s ports (backward compatible)
Supports SATA 6Gbit/s ports (backward compatible)
Supports SAS and SATA hard drives with 29/22Pin (female)
2x SFF-8643: 4x each SAS/SATA to 1x SFF-8643
2x 4PIN Molex power connector for backplane supply
Supports hard drives with DC +12V, +5V and +3.3V
8x yellow power LED - lights up when hard drive connected
8x blue status LED - blinks when hard drive access
Ready for NT-MR redundant power supply (eg 2164 or 2169) with mounting bracket E2452 (power supply and mounting bracket not included)
For the connection of an SFF backplane to a SATA controller, suitable cables are required (optionally available)
Installation depth: 550 mm
Fan type: 3x 80 mm in the central wall
Number of PCI slots: 7x low profile PCI slots
Front USB
Material: steel / aluminium
Dimensions (W x D x H): 430 x 550 x 88 mm
Weight: 7.7 kg
