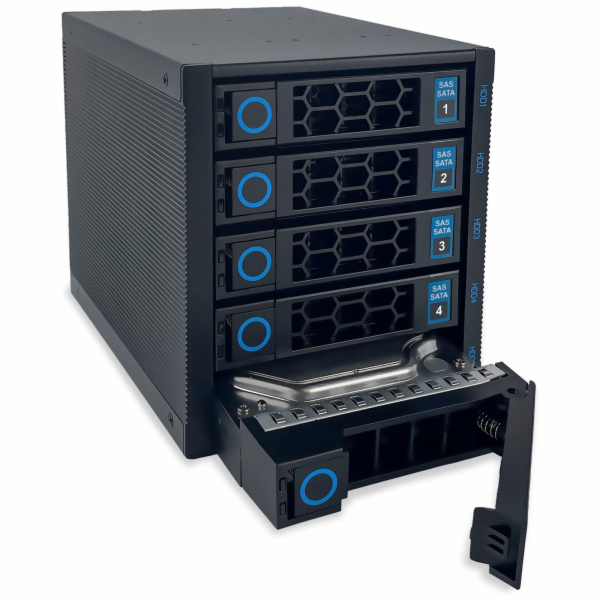

FANTEC WR-C3151-6G Backplane for 5x 3,5/2,5 HDD/SSD

RAID: ano
Lüfter: ano
SATA: ano
SAS: ano
Typ: Obal na pevný disk
Kompatibilní s HDD: 2,5" / 3,5"
Kompatibilita s SSD: 2,5" / 3,5"
Max. počet paměť. medií: 5
Barva: černá
Obal: kov / plast
Šířka (mm): 211
Výška (mm): 126
Hloubka (mm): 146
Hmotnost (kg): 1,97

FANTEC WR-C3151-6G Backplane for 5x 3.5/2.5 HDD / SSD

Backplane systems are used in servers and enable the easy installation or replacement of hard disks. Due to the plug-in technology of hard disk plug-in units, the hard disks are integrated into the system via plug-in connections and not, as usual, via cable connections. This means that the hard disks can be replaced without tools and very easily, without having to open the server housing. The hot-swap technology here additionally enables the exchange and replacement of hard disks during operation.

Features:


Fast mounting and exchange of hard disks by using hard disk carriers
Hard disk carriers suitable for 3.5" or 2.5" HDD or SSD
Suitable for RAID
Plug & Play
Hotswap
LEDs for hard disk status indication
Suitable for 3.5" and 2.5" SAS 6G
For 3.5" and 2.5" SATA 6G suitable
4x LEDs hard disk access: green - on / blue blinking - data access
1x 80x80x25 mm fan
SAS I,II,III 6G + SATA I,II,III 6G
Metal/plastic case, slide-in units and front doors
case, slide-in modules, front doors black
3x 5.25" bay
5x SAS/SATA 22-pin connectors internal
5x SAS/SATA 7-pin connectors external
Dimensions product (W x D x H): 146 x 211 x 126 mm
Weight: 1.97 kg
