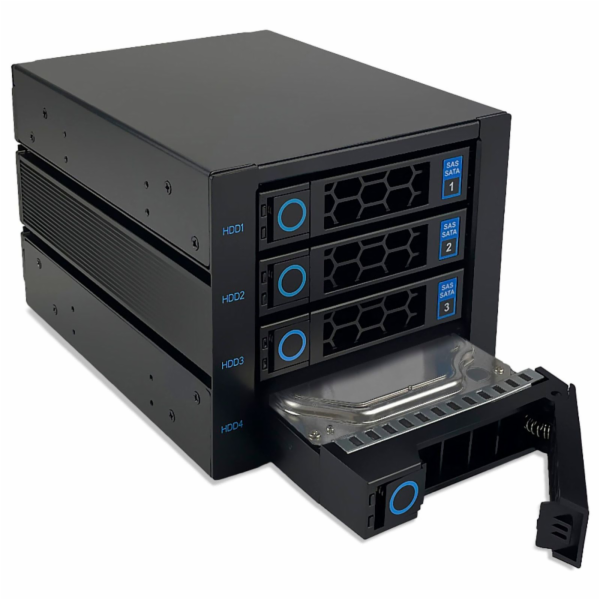

FANTEC WR-NVMeU.2-C3141 U.2/SAS/SATA Backplane

RAID: ano
Lüfter: ano
M.2 (NVMe / PCIe): ne
SATA: ano
SAS: ano
Typ: Obal na pevný disk
Kompatibilní s HDD: 2,5" / 3,5"
Kompatibilita s SSD: 2,5" / 3,5"
Max. počet paměť. medií: 4
Barva: černá
Obal: kov / plast
Šířka (mm): 211
Výška (mm): 126
Hloubka (mm): 146
Hmotnost (kg): 1,97

FANTEC WR-NVMeU.2-C3141, U.2/SAS/SATA backplane for 4× 3.5"/2.5" NVMe / SSD / HDD

Backplane systems are used in servers and enable the easy installation or replacement of hard disks. Due to the plug-in technology of hard disk bays, the hard disks are integrated into the system via plug-in connections and not via cable connections, as is usually the case. This means that the hard disks can be replaced without tools and very easily, without having to open the server housing. The hot-swap technology here additionally enables the exchange and replacement of hard disks during operation.

Features:


Fast mounting and exchange of hard disks by using hard disk carriers
Hard disk carriers suitable for 3.5" or 2.5" HDD or SSD
Suitable for RAID
Plug & Play
Hotswap
LEDs for hard disk status indication
Suitable for 3.5" and 2.5" U.2 (32G)
Suitable for 3.5" and 2.5" SAS (12G)
Suitable for 3.5" and 2.5" SATA (6G)
4x LEDs hard disk access: green - on / blue blinking - data access
1x 80x80x25 mm fan
Data connector to external: SFF8654, SFF8654x8, PCIe3.0x8, 2xU.2 each, 7.9GByte/s
Data connector to external: SFF8643, 12G for SATA (6G) and SAS (12G)
Metal/plastic case, bays and front doors
Black case, bays, front doors
4x U.2/SAS/SATA connectors internal
1x SFF8643 connector external
2x SFF8654x8 connector external
3x 5.25" slot
dimensions (W x D x H): 146 x 211 x 126 mm
Weight: 1,97 kg
